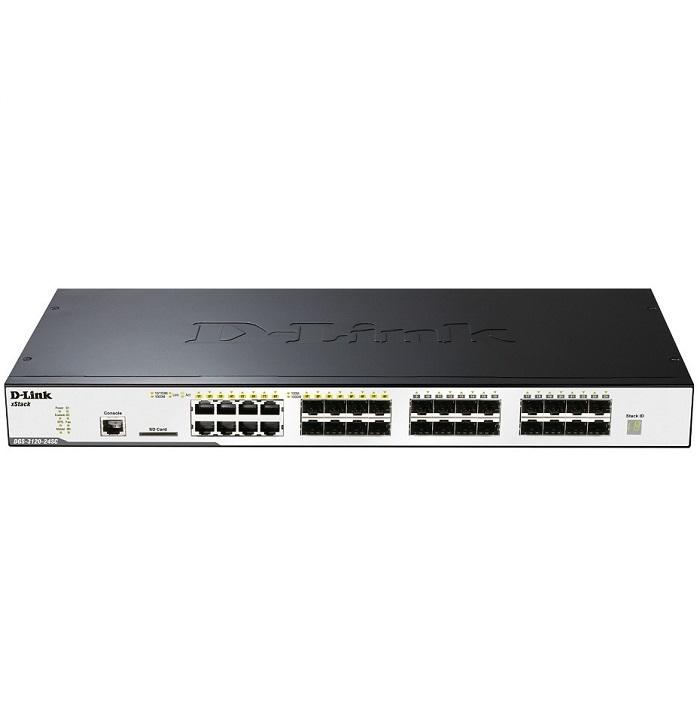

24-Port Gigabit SFP L2 Stackable Managed Switch D-Link DGS-3120-24SC/EEI
- The DGS-3120-24SC/EEI (/EEI: Enhanced Image) provides 16 SFP Gigabit Ethernet ports and 8 combo 1000BASE-T/SFP Gigabit ports.
- The default power budget for these models is 370 watts and can be expanded to 760 watts with the DPS-700 RPS.
- The DGS-3120 Series is embedded with two different software images - the Standard Image (SI) and Enhanced Image (EI). The Standard Image provides sophisticated features for campus or enterprise usage. It includes advanced Quality of Service (QoS), traffic shaping, L2 multicasting, robust security features, and IPv6 features which are suitable for next-generation IPv6 networks or triple play applications over Metro Ethernet. The Enhanced Image supports ERPS, Double VLAN (Q-in-Q), Ethernet OAM, Static Route, IMPB, and sFlow.
- /ESI: EU 2 round pin power cord.
Specifications
| Model | DGS-3120-24SC/EEI |
| Interfaces | |
| Number of SFP ports | 16 |
| Combo 1000Base-T/SFP ports | 8 |
| Console Port | RS-232 |
| SD card slot | Yes |
| stacking ports | 2 |
| Maximum number of units per stack | 6 |
| Maximum stacking bandwidth | Linear topology - up to 20 Gbps Bi-directional redundant ring topology - up to 40 Gbps |
| Performance | |
| Switch Capacity | 88 Gbps |
| 64-Byte Packet Forwarding Rate | 65.48 Mpps |
| Packet Buffer | 2MB |
| Flash Memory | 32MB |
| Physical and Environmental | |
| Power Input | 100 to 240 VAC, 50 to 60Hz Internal Universal Power Supply |
| Power Consumption | 34.1W |
| Dimensions | 440 x 210 x 44 mm |
| Weight | 2.6kg |
- Bảo hành 36 tháng.
