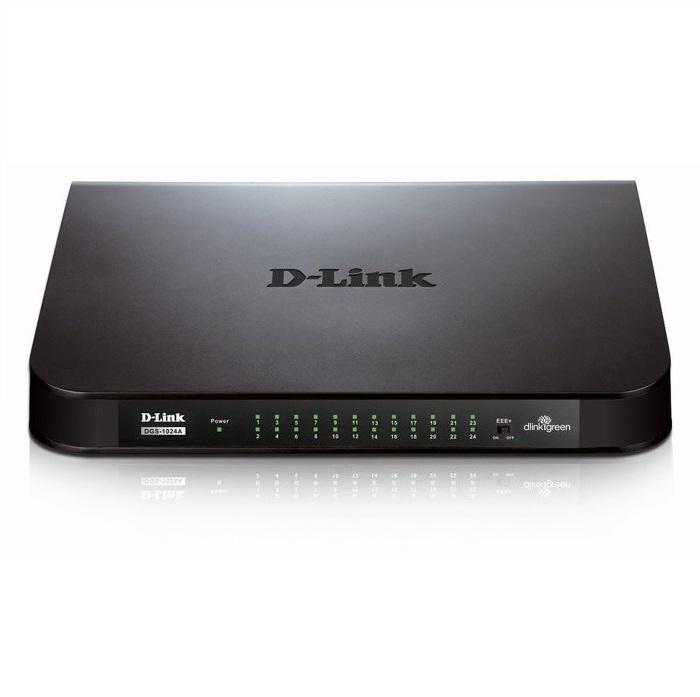

24-Port Gigabit Switch D-Link DGS-1024A
– Hỗ trợ 24 Port 10/100/1000Mbps RJ45.
– Hỗ trợ MDI-MDIX, Plug & Play.
– Tự động dò tìm tốc độ, hỗ trợ tính năng chuyển mạch Store & Forward.
– Vật liệu: Vỏ nhựa.
– Đèn hiển thị tốc độ.
Features
– 24 Gigabit Ethernet ports for fast network speeds.
– Industry-first plastic case for better heat dissipation and a compact size.
– Fanless design for silent operation.
– Performance
– IEEE 802.3x Flow Control.
– Auto MDI/MDI-X crossover for all ports.
– Full/ half-duplex for Ethernet/Fast Ethernet speeds.
– Supports 9216 Byte Jumbo Frames.
– Energy Efficiency
– Innovative D-Link Green Ethernet Technology conserves energy.
– Link status detection reduces power usage.
– Cable length detection uses energy more efficiently.
– 802.3az EEE hardware implementation reduces power consumption significantly.
– RoHS compliant.
– Easy Installation
– Plug-and-play installation saves you time.
Specifications
Number of Ports | Twenty-four 10/100/1000 Gigabit ports |
Standards | IEEE 802.3 10BASE-T Ethernet |
IEEE 802.3u 100BASE-TX Fast Ethernet | |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
ANSI/ IEEE 802.3 NWay auto-negotiation | |
IEEE 802.3x Flow Control | |
Data Tranfer Rates | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) |
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) | |
Gigabit Ethernet: 2000 Mbps (full duplex) | |
Network Cables | 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max), EIA/TIA-586 100-ohm STP (100 m max) |
100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max), EIA/TIA-568 100-ohm STP (100 m max) | |
D-Link Green Features | IEEE 802.3az Energy Efficient Ethernet (EEE) |
Link status detection power saving | |
Cable length detection power saving | |
RoHS Compliance | |
LAN Features | Back pressure at half-duplex operation |
Auto MDI/MDIX | |
Wire speed reception and transmission | |
Store-and-Forward switching method | |
16K MAC addresses | |
3.5 Mbits RAM for data buffering | |
Jumbo Frames: 9216 Bytes | |
Switching Capacity 48 Gbps | |
Port Packet Filtering | 10M: 14,880 pps |
100M: 148,800 pps | |
1000M: 1,488,000 pps | |
LEDs | Power LED |
24 Link/Activity/ Speed LEDs (one per port) | |
Power Inputs | Power InputsSwitching 12V/ 1.5A level V power adapter |
Power Consumption | Power on (standby): 4.94 Watts |
Power max: 15.7 Watts | |
Heat Dissipation | Power on (Standby): AC input: 16.86 BTU/h |
Power max: AC input: 53.58 BTU/h | |
MTBF | 336,072 hours |
Certifications | FCC Class A |
ICES-003 Class A | |
CE Class A | |
C-Tick Class A | |
CB | |
CUL | |
Dimensions | 257 x 178 x 46 mm |
Weight | 0.76 kg |
- Bảo hành: 36 tháng.
