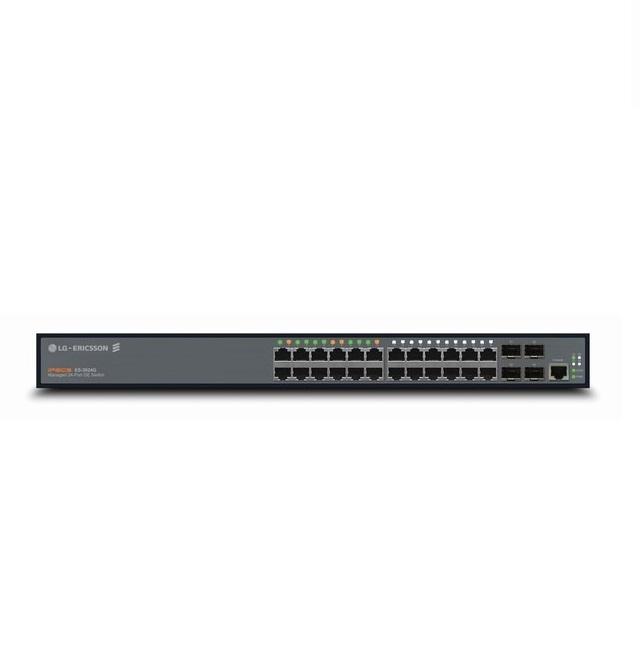

24-port 10/100/1000Mbps Managed Switch LG-ERICSSON ES-3024G
– Switch 24 cổng 10/100/1000 Base-TX + 4 khe cắm SFP (21~24) + 1 cổng điều khiển (RJ45)
– Tích hợp sẵn QoS, bảo mật
– Tự động chuyển chế độ standby khi không kết nối với thiết bị
– Cấu hình qua giao diện Web/telnet/CLI
Tính năng cơ bản
– 802.1d(STP)/802.1w(RSTP)/802.1s(MSTP): Yes
– BPDU filter/guard: Yes
– Root guard: Yes
– Max number of groups: 12
– Max number of members per group: 8
– Source and Destination MAC based load balance: Yes
– VLAN IDs: 4096
– Max Number of active VLANs per Switch: 256
– Port/MAC/IP based VLAN, Private VLAN, Voice VLAN, GVRP: Yes
– MVR (Multicast VLAN Registration), VLAN Double tagging (Q in Q): Yes
– Link Layer Discovery Protocol: Yes
– IGMP Snooping v1/2/3, Snoop IGMP packets per VLAN, Join / Leave, Fast leave, Quierer: Yes
– Max Number of multicast groups: 256
– QoS on L3 layer using TOS field of IP packet header: Yes
– DSCP to 802.1p mapping: Yes
– IPv4 Diffserv: Yes
– QoS on L2 layer using TCI field of VLAN header: Yes
– Marking / Remarking: Yes
– Strict Priority Queueing, Weighted Round Robin Queueing: Yes
– MAC Based ACL: Yes
– Source and Destination IP Based ACL: Yes
– Source and Destination Port Based ACL: Yes
– Protocol type based ACL: Yes
– Time based: Yes
– Number of ACL rules: 512
– Extended IPv6 ACL: 48-port model Only
– MAC limit per port, MAC based filtering: Yes
– Full / half duplex, Back pressure flow control for half duplex: Yes
– Port based rate limiting/shaping: Yes
– Broadcast and Multicast packet control: Yes
– Static/Dynamic port security (MAC based): Yes
– DHCP Snooping, IP Source Guard (IP Spoofing prevention): Yes
– Dynamic ARP Inspection: Yes
– RADIUS/TACACS+ Authentication and Accounting: Yes
– 802.1x Extensible Authentication: Yes
– 802.1x Multiple Host Multiple Authentication per Port: Yes
– 802.1x Guest VLAN with EAP enabled on port (GVLAN-SHSA): Yes
– 802.1x MAC based EAP Authentication (Clientless EAP): Yes
– 802.1x RADIUS assigned VLAN in MHMA mode: Yes
– User/password authentication (upto 5 users): Yes
– HTTP, HTTPS, Telnet, SSH, SNMP v1/2/3, SNMP trap: Yes
– TCP/IP based internets (RFC 1213), RMON v1/2 (RFC 2819 / RFC 4502): Yes
– DHCP Client, DHCP Snooping, DHCP Provision: Yes
– FTP Client, TFTP Client: Yes
– Received traffic, Transmit traffic, Received and Transmit traffic, N:1 mirroring: Yes
– SNTP (RFC 2030): Yes
– Configuration file upload/download: Yes
– Firmware backup / upgrade, Dual firmware images: Yes
– Telnet server/ICMP: Yes
– IP Clustering up to 36 switches: Yes
Tính năng kỹ thuật
Performance | Switching Fabric Capacity (Gbps) | 48 |
Packet Forwarding Throughput (Mpps) | 35.7 | |
Flash Memory | 32M | |
DRAM | 128M | |
MAC Address Capacity | 8K | |
MTU / Jumbo Frames support | 10K | |
Auto-negotiation, Auto-MDI/MDIX | Yes | |
Port | 10/100Base-TX Ports per Unit | - |
10/100/1000Base-T Ports per Unit | 24 | |
Type of Built-in uplink ports | 4 shared SFP | |
Types of GBIC and SFP support | SFP (SX, LX, LH, FX) | |
Management | Management Console port (Connector) | RJ45 |
Reset button (rear panel) | Yes | |
Dimensions | 19” Rack Space[EIA Standard RU] | Yes |
Height [mm] | 44 | |
Width (mm) | 440 | |
Depth (mm) | 210 | |
Weight (Kg) | 2.3 | |
Power | 100-240 VAC, 50/60Hz | Yes |
Max power consumption (Watts) | 23 | |
Environmental | Operating Temperature (°C) | 0 to 50 °C |
Storage Temperature (°C) | -40 to 70 °C | |
Operating Humidity (non-condensing) | 10% to 90% | |
Storage Humidity (non-condensing) | 10% to 90% | |
Operating Altitude (Meters) | 4000m | |
Certifications | EMC Compliance - FCC class A, CE | Yes |
Electromagnetic immunity, Korea [KCC] | Yes | |
Safety Compliance - UL, CB | Yes | |
Environmental Regulation Compliance | WEEE, RoHS | Yes |
PFOS | Yes |
Phần mềm quản lý thiết bị IPECS-UDM:
– Quản lí cấu hình thiết bị qua giao diện Web
– Giao tiếp Telnet/CLI với dòng ES-3000
– Giám sát lưu lượng và tình trạng port/thiết bị qua giao thức SNMP
– Kiểm tra chất lượng mạng bằng ping/traceroute
– Trích xuất ra định dạng excel.
– Bảo hành: 12 tháng.
