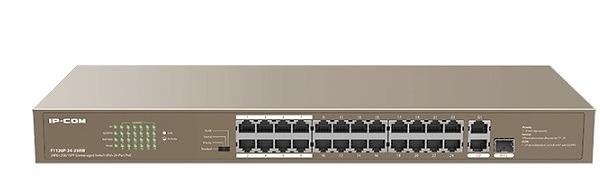

24-Port PoE 10/100Mbps PoE Switch IP-COM F1126P-24-250W

Danh mục sản phẩm

Chọn lại

24-Port PoE 10/100Mbps PoE Switch IP-COM F1126P-24-250W

  • MS 000006059
  • IP-COM
Giá : 6,564,000 vnđ (Đã bao gồm VAT)

24-Port PoE 10/100Mbps PoE Switch IP-COM F1126P-24-250W

24-Port PoE 10/100Mbps PoE Switch IP-COM F1126P-24-250W

- Hỗ trợ 24 cổng 10/100Mbps PoE, 2 cổng 10/100/1000Mbps Base-T RJ45 (Data) và 1 cổng SFP 1000Mbps Base-X (Combo).

- Tiêu chuẩn kết nối: IEEE802.3/802.3u/802.3x/802.3ab/802.3af/at.

- Công suất mỗi cổng < 30W.

- Tổng công suất: 250W.

- Switching capability: 8.8Gbps.

- Tốc độ chuyển tiếp gói tin: 6.55Mpps.

- Cổng VLAN: 1-24.

- Bảng địa chỉ MAC 16K và địa chỉ MAC tự động học.

- Băng thông tổng lên tới 7.2Gbps.

- 4 chế độ hoạt động với 1 phím chuyển duy nhất: Tiêu chuẩn, ưu tiên, mở rộng và Vlan.

- Cung cấp năng lượng tối đa 230W PoE và 30W trên mỗi cổng.

- Cổng Uplink SFP Gigabit.

- Chống sét 6kV.

- Nguồn điện: AC 100-240V 50/60Hz.

- F1126P-24-250W là lựa chọn lý tưởng cho SMB, khách sạn, trường học, nhà máy có yêu cầu giám sát video và kết nối mạng không dây.

Đặc tính kỹ thuật

StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
LED indicators24 x Link/Act LEDs
1 x G1 LED
1 x G2/SFP2 LED
1 x PoE-MAX LED
1 x Power LED
Interfaces24 x 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 x 10/100/1000 Mbps Base-T RJ45 ports (Data)
1 x 1000 Mbps Base-X SFP port (Combo)
Lightning protectionPort: 6kV
Power: 6kV
Forwarding modeStore-and-forward
Switching capability8.8 Gbps
Packet forwarding rate6.55 Mpps
Buffer4 Mbit
MAC address table16K
PoE supplyPorts 1-24 support standard IEEE802.3af/at
30W output per PoE port
230W output of the total PoE Power
Power consumption250W output the whole device
Input voltageAC: 100-240V~ 50/60Hz
Dimensions (LxWxH)440 mm x 178.8 mm x 44 mm
Four ModesStandard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately.
Extend: In this mode, data rate of ports 17 - 24 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
VLAN: In this mode, ports 1 - 24 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.'
Operating environmentOperating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
CertificatesCCC, FCC, CE, RoHS

- Bảo hành: 24 tháng.
