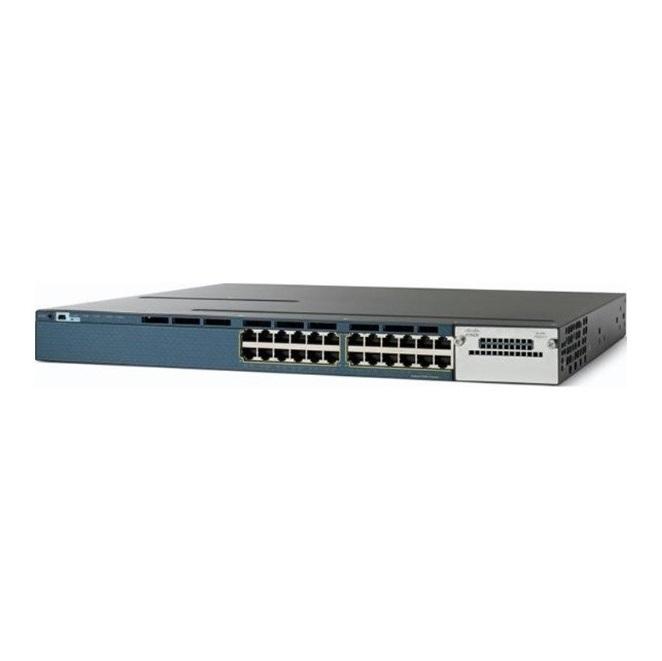

24-Port PoE IP Services Switch Cisco Catalyst WS-C3560X-24P-E
- Catalyst 3560X 24 Port PoE IP Services.
- Device Type: Switch - 24 ports - L3 - Managed.
- Enclosure Type: Rack-mountable 1U.
- Interfaces: Gigabit Ethernet.
- Ports: 24 x 10/100/1000 (PoE+).
- Feature Set: IP Services.
Đặc tính kỹ thuật
| Device Type | Switch-24 ports-L3-Managed |
| Enclosure Type | Rack-mountable 1U |
| Interfaces | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) |
| Power Over Ethernet | PoE+ |
| PoE Budget | 435 W |
| Performance | Switching fabric bandwidth : 160 Gbps Forwarding performance : 65.5 Mpps |
| Capacity | Virtual interfaces (VLANs): 1005 Switched virtual interfaces (SVIs): 1000 |
| Jumbo Frame Support | 9216 |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| Power | AC 120/230V (50/60 Hz) |
| Dimensions (WxDxH) | 44.5x46x4.45 cm |
| Weight | 7.1 kg |
- Bảo hành: 12 tháng.
