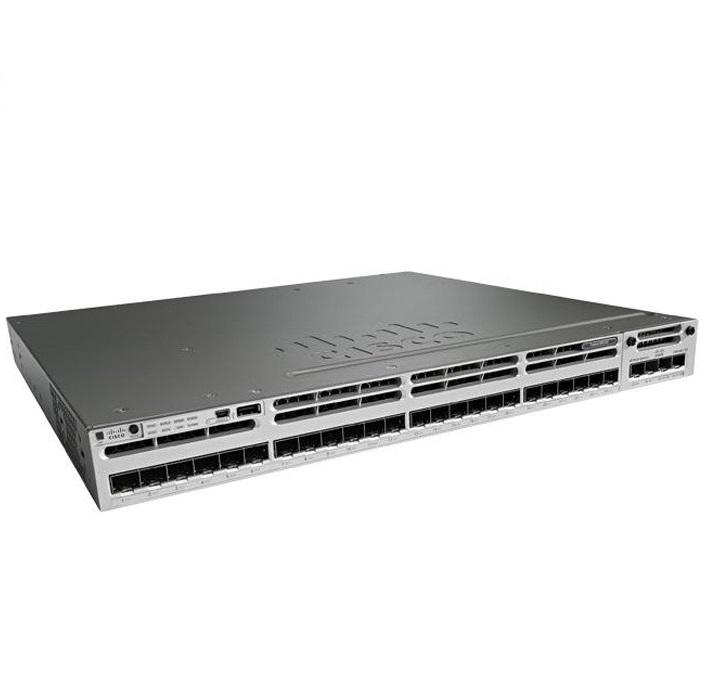

24-Port SFP Ethernet IP Base Switch Cisco WS-C3850-24S-S
- Cisco Catalyst WS-C3850-24S-S is the next generation enterprise-level stackable switch that is integrated with 24 SFP ports in IP base feature set.
- WS-C3850-24S-S supports up to 1K VLANs and delivers comprehensive layer 2 switching and limited layer 3 capabilities by offering the feasible solution for access layer or distribution layer.
Specifications
| Model | WS-C3850-24S-S |
| Feature Set | IP Base |
| Ports | 24 x Gigabit SFP |
| Max. stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Switching Capacity | 92 Gbps |
| Forwarding Performance | 68.4Mpps |
| Jumbo Frame Support | 9198 bytes |
| RAM | 4GB |
| Flash Memory | 2GB |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MAC Address Table Size | 32000 entries |
| Advanced Switching | Layer 3 |
| Routing Protocol | RIP-1, RIP-2, EIGRP, RIPng |
| Features | VLAN, ARP, ACL, QoS, CoS, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, FTP client, Flexible NetFlow (FNF), Multiple Spanning Tree Protocol (MSTP), CAPWAP , Port Aggregation Protocol (PAgP), Port Security, Uni-Directional Link Detection (UDLD), Wireless Intrusion Prevention System (WIPS), auto-negotiation, full duplex mode, Cisco StackWise Technology, DiffServ Code Point (DSCP)… |
| Remote Management Protocol | CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 2000 |
| Power Supply | 110 to 220 VAC |
| Power Consumption | 350W |
| Dimensions | 4.45 x 44.5 x 45 cm |
| Weight | 7.03kg |
- Bảo hành: 12 tháng.
