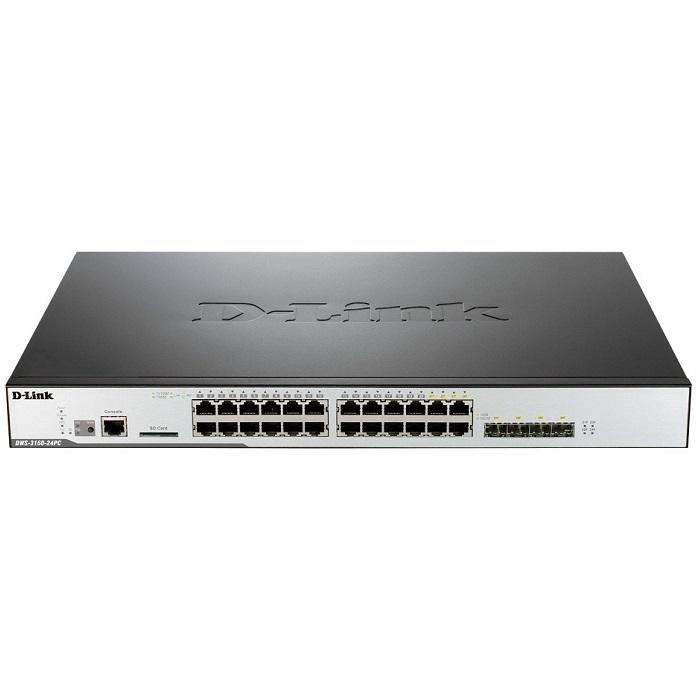

24-Port Unified Management Switch D-Link DWS-3160-24PC/E
- 20 x 10/100/1000Base-T PoE ports Unified Management Switch with 4 Combo 1000Base-T/SFP ports.
- Support 12 AP to 48 AP per controller.
- Port 1-24 up-to 30W.
- PoE budget: 370W.
Specifications
| Model | DWS-3160-24PC/E |
| Interfaces | 20 x 10/100/1000BASE-TX ports |
| 4 x 1000Base-T/SFP ports | |
| RS-232 Console port | |
| SD card slot | |
| Switch Capacity | 48 Gbps |
| Maximum Forwarding Rate | 35.71 Mpps |
| Packet Buffer | 2 MB |
| Security | RADIUS Authentication Management Access |
| TACACS+ Authentication for Management Access | |
| SSH & SSL Support | |
| MAC Filtering | |
| 802.1X Port-based Access Control & Guest VLAN | |
| Denial of Service Protection | |
| Dynamic ARP Inspection | |
| Protected Port | |
| Broadcast Storm Control | |
| Access Control List | |
| Number of VLANs | 4K |
| Static Routes | 512 |
| SNMP | Yes |
| QoS | Yes |
| Layer | 2+ |
| Port Mirroring | Yes |
| MTBF | 282,541 hours |
| Maximum Power Consumption | 467 W (full POE load) |
| Power Input | 100 to 240 VAC, 50 to 60Hz Internal Universal Power Supply |
| Power Consumption | 467 W (full PoE load) |
| Dimensions (W x D x H) | 440 x 310 x 44 mm |
| Weight | 5.24 kg |
- Bảo hành 36 tháng.
