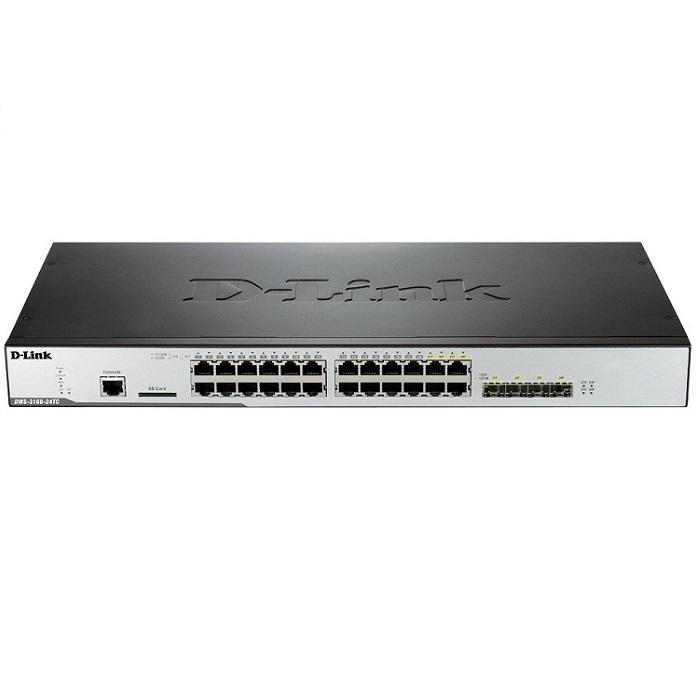

24-Port Unified Management Switch D-Link DWS-3160-24TC/E
- 24-Port Gigabit L2+ Unified Managed Switch including 4 x Combo 1000BASE-T/SFP ports.
- Managed up to 12 Access Points per switch, upgradable up to 48 Access Point.
Specifications
| Model | DWS-3160-24TC/E |
| Network Interfaces | (20) 10/100/1000Base-T |
| (4) Combo 10/100/1000Base-T/SFP | |
| Console port | RJ-45 |
| Max. Power Consumption | 37.7 W |
| MAC Address Table | 16K |
| Switching Capacity | 48 Gbps |
| Maximum Forwarding Rate | 35.71 Million Packets per Second |
| Forwarding Method | Store and Forward |
| Packet Buffer Memory | 2 MB |
| 802.3af Power over Ethernet | 15.4W Per Port |
| 370W Total Power Budget | |
| 740W Total Power Budget with RPS | |
| Number of VLANs per Device | 4K |
| Static Routes | 512 |
| Management | Manages up to 48 Unified Access Points per switch, up to 192 APs per peer group |
| Switch Cluster for Single IP Management | |
| SSH | |
| SSL | |
| SNMP v1, 2c, 3 | |
| sFlow | |
| Dual Image Support | |
| Web GUI | |
| Command Line Interface | |
| LAN Security | RADIUS Authentication Management Access |
| TACACS+ Authentication for Management Access | |
| SSH & SSL Support | |
| MAC Filtering | |
| 802.1X Port-based Access Control & Guest VLAN | |
| Denial of Service Protection | |
| Dynamic ARP Inspection | |
| Protected Port | |
| Broadcast Storm Control | |
| Access Control List | |
| Dimensions | 440 x 210 x 44 mm |
| Weight | 2.55kg |
- Bảo hành 36 tháng.
