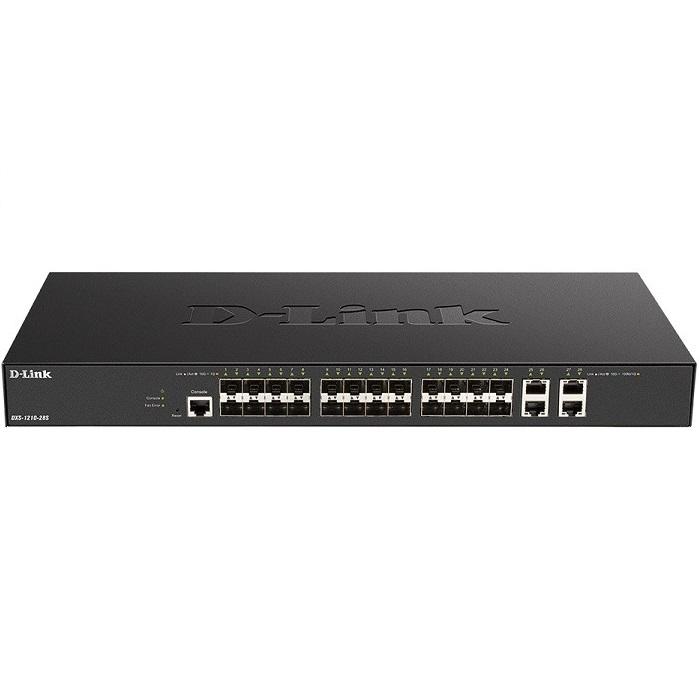

28-port 10G Smart Managed Switch D-Link DXS-1210-28S
- 24-port 10G SFP+ + 4-port 10GBASE-T Smart Managed Switch
- Layer 2 management and security, with Layer 3 Lite features
- Up to 32K MAC address table size to connect more clients
Features
Security Features
- Access Control List
- IP-MAC-Port Binding
- Clientless MAC/Web Access Control
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
Intuitive Management
- D-Link Network Assistant utility or Web-based GUI
- Built-in SNMP MIB for remote NMS (D-View 7)
- Full CLI through console and Telnet
Advanced Features
- Auto Surveillance VLAN
- Auto Voice VLAN
- Loopback Detection
- Cable Diagnostics
- Static Route
- LLDP/LLDP-MED
Green Technology
- Power saving via the following features:
- Link Status Detection
- LED Shut Off
- Port Shut Off
- System Hibernation
Specifications
| Model | DXS-1210-28S |
| General | |
| Interfaces | 24 x 10G SFP+ ports 4 x 10G BASE-T ports |
| Console Port | RJ-45 console port |
| Port Standard & Functions | IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3az Energy Efficiency Ethernet (EEE) IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet IEEE 802.3ae 10GbE over fiber IEEE 802.3z 1000BASE-X Auto MDI/MDIX support for 1000/10GBASE-T |
| Network Cables for 10GBASE-T | Cat. 6 (30 m max) Cat. 6A or Cat. 7 (100 m max) |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all twisted-pair ports |
| Performance | |
| Switching Capacity | 560 Gbps |
| Maximum Packet Forwarding Rate | 416.64 Mpps |
| Transmission Method | Store-and-forward |
| MAC Address Table | Up to 32,000 entries per device |
| Physical/Environmental | |
| Acoustic | Fan at high speed: 52.3 dB(A) Fan at low speed: 40.2 dB(A) |
| Fans | 2 x Smart Fan |
| AC Input | 100 to 240 VAC |
| Maximum Power Consumption | 100V / 60Hz: 87.7W 240V / 60Hz: 85.7W |
| Standby Power Consumption | 100V / 60Hz: 27.6W 240V / 60Hz: 27.7W |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
| Dimensions (L x W x H) | 441 x 209.5 x 44 mm |
| Weight | 3.27 kg |
- Bảo hành: 3 năm.
