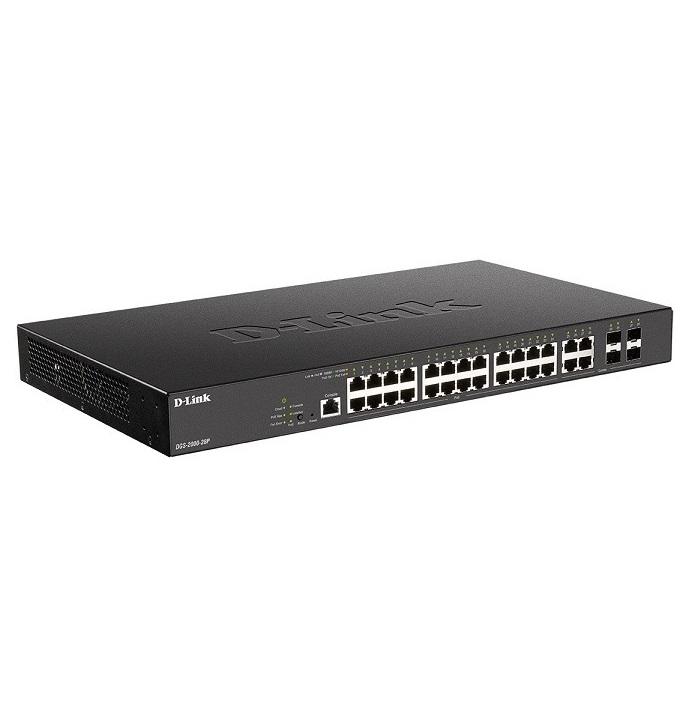

28-port Gigabit Layer 2 Managed PoE Switch D-Link DGS-2000-28MP

28-port Gigabit Layer 2 Managed PoE Switch D-Link DGS-2000-28MP

  • MS 000013713
  • D-Link
Giá : 38,316,000 vnđ (Đã bao gồm VAT)

28-port Gigabit Layer 2 Managed PoE Switch D-Link DGS-2000-28MP

28-port Gigabit Layer 2 Managed PoE Switch D-Link DGS-2000-28MP

Interfaces

- 24 x 10/100/1000BASE-T PoE ports

- 4 x 100/1000 Mbps GbE/SFP combo ports

Layer 2 Features

- 8K MAC address table

- IEEE 802.1D STP, 802.1w RSTP, and 802.1s MSTP

- Loopback detection

- Supports IEEE 802.3ad Link Aggregation

- Port-based Q-in-Q

Security and Authentication

- Access Control Lists (ACLs)

- IP-MAC-Port Binding (IMPB)

- D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding

- Port Security

Intuitive Management

- D-Link Network Assistant (DNA) utility or Web UI

- Command Line Interface (CLI) through Telnet or SSH

- RJ-45 Console Port

Specifications

ModelDGS-2000-28MP
Hardware VersionA1
Interface
Size19-inch standard rack-mount width
1U height
Interfaces24 x 10/100/1000BASE-T PoE ports
4 x 100/1000 Mbps GbE/SFP combo ports
Console PortRJ-45 Connector
Network CablesUTP Cat. 5, Cat. 5e (100 m max.)
Full/Half-DuplexFull/half-duplex for 10/100 Mbps speeds
Full-duplex for 1000 Mbps speeds
Media Interface ExchangeAuto MDI/MDIX adjustment for all twisted-pair ports
Performance
Switching Capacity56 Gbps
Forwarding MethodStore-and-forward
64-byte Max. Forwarding Rate41.7 Mpps
MAC Address Table Size8K entries
CPU Memory256 MB DDR3
Packet Buffer4.1 Mbits
Flash Memory32 MB
LEDs
Link/Active/Speed (per port)Yes
Power (per device)Yes
PoE
PoE StandardIEEE 802.3af/at
PoE Capable PortPorts 1 -8
PoE Power Budget370W
Physical
AcousticHigh speed: 51.7 dB(A)
Low speed: 44.9 dB(A)
Weight3.94 kg
Dimensions440 x 250 x 44 mm
Power Input100 to 240 V AC, 50/60 Hz internal universal power supply
Maximum Power
Consumption
446.1 W (PoE on)
29.8 W (PoE off)
Ventilation2 x Smart fan
Operating Temperature-5 to 50 °C (23 to 122 °F)
Storage Temperature -40 to 70 °C (-40 to 158 °F)
Operating Humidity10% to 90% non-condensing
Storage Humidity5% to 90% non-condensing

- Bảo hành: 36 tháng.
