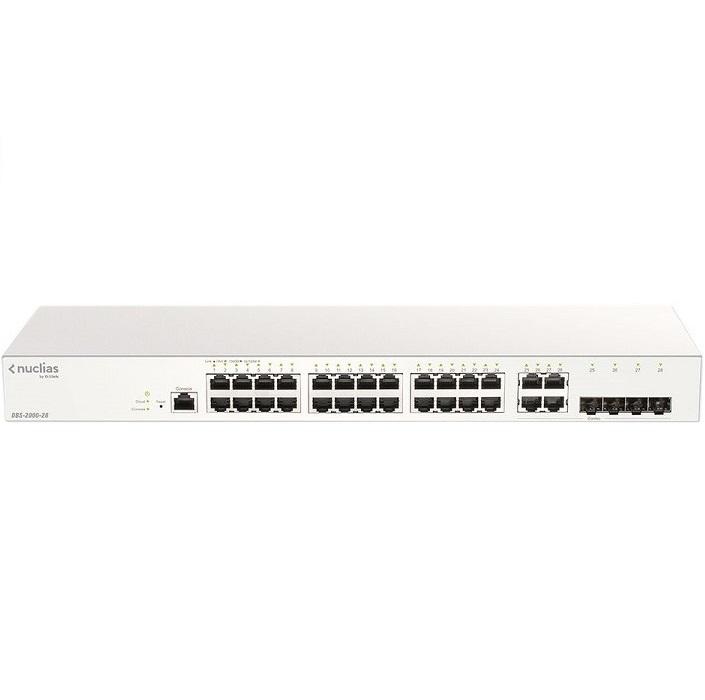

28-port Gigabit Smart Managed Nuclias Cloud Switch D-Link DBS-2000-28
Interfaces
- 24 x 10/100/1000 BASE-T
- 4 x 1000Mbps combo
D-Link Nuclias Cloud Management
- Centralized cloud-based management
- Zero-touch deployment
- Intuitive web and app-based interface
- Real-time at-a-glance network information
- Management of multiple sites and devices through a single pane of glass
- Over-the-air firmware updates through the cloud
- Instant alerts and notifications
Best-in-class Built for Enterprise Switches
- Energy-Efficient Ethernet (EEE)
- Supports 802.1D Spanning Tree (STP) and 802.1w Rapid Spanning Tree (RSTP)
- 802.3ad Link Aggregation
- Loopback protection and IGMP snooping
- Access Control Lists (ACLs)
Specifications
| Model | DBS-2000-28 |
| Hardware Version | A1 |
| General | |
| Number of Ports | 24 x 10/100/1000 BASE-T 4 x 1000 Mbps combo |
| Port Functions | IEEE 802.3 compliant IEEE 802.3u/802.3z compliant IEEE 802.3ab compliant IEEE 802.3af/802.3at compliant IEEE 802.3x Flow Control Supports manual/auto MDI/MDIX configuration Supports half/full-duplex operation IEEE 802.3az compliant |
| Performance | |
| Switching Capacity | 56 Gbps |
| Maximum Forwarding Rate | 41.7 Mpps |
| MAC Address Table Size | 8K entries |
| Packet Buffer | 4.1 MBits |
| Flash Memory | 32 MB |
| Physical | |
| Acoustic | 0 dB(A) |
| Weight | 2.15 kg |
| Dimensions | 440 x 140 x 44 mm |
| Power Input | 100 to 240 V AC, 50/60 Hz internal power supply |
| Heat Dissipation | 59.09 BTU/hr |
| Ventilation | Fanless |
| Operating Temperature | -5 to 50 °C (23 to 122 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
| Software | |
| VLAN | 802.1Q Tagged VLAN Management VLAN Voice VLAN VLAN Group: Supports 256 static VLAN groups |
| L2 Features | Flow Control Jumbo Frames IGMP Snooping Cable Diagnostics LLDP Spanning Tree Protocol 802.3ad Link Aggregation |
| Security | SSL DHCP Server Screening Port Security Access Control List (ACL): Max # of Entries: 768 |
| Management | Cloud-based through Nuclias Nuclias mobile app |
| Green Technology | Compliant with RoHS 6 Time-based PoE |
- Bảo hành: 36 tháng.
