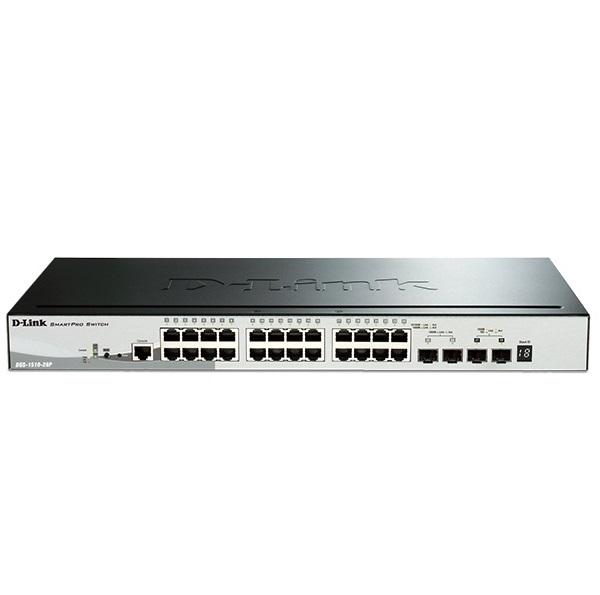

28-Port SmartPro (Max) Gigabit Managed PoE Switch D-Link DGS-1510-28XMP

-24-port UTP 802.3af PoE & 802.3at PoE+ 10/100/1000Mbps, 4-port 10G SFP+ (Ports 1-24: Up to 30 W, Power Budget : 193 W, H/W : A1, Rackmountable).

-The DGS-1510-28XMP is D-Link's latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB aggregation environments.

-The DGS-1510-28XMP provides a reliable and scalable interconnection between core switches and edge switches.

-Available in 16, 24, or 48 10/100/1000 Mbps port models with additional fiber ports for physical stacking and/or uplinks, the DGS-1510-28XMP are perfect for any business network environment.

-The DGS-1510-28XMP PoE-enabled switches are ideal for businesses looking to power VoIP phones, wireless access points, or network cameras.

-The DGS-1510- 28XMP support up to 30W of power output, giving you flexible power allocation for a variety of powered devices.

-This enables you to scale your operations to meet business growth and incorporate new technologies all with affordable installation costs.

Power over Ethernet

-The DGS-1510-28XMP’s 10/100/1000 Mbps ports are PoE-enabled for powering devices such as IP cameras, VoIP phones and wireless access points.

-Compliant with 802.3af and 802.3at, the DGS-1510-28XMP supports up to 30W of power output on any particular PoE port up to 193W, providing flexibility in power allocation for a variety of powered devices, including new 802.11ac wireless access points that require 802.3at power for full functionality.

-Time-based PoE enables power to a port to be shut off at a scheduled time, reducing power usage and increasing security by powering off devices that should not be in use during non-business hours.

10G SFP+ Stacking/Uplink Ports

-Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 6 units or 288 gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth with cost efficiency.

-Users can also easily configure and manage any of the DGS-1510-28XMP SmartPro series in a single stack.

-With 20 Gbps full duplex capabilities, the DGS-1510-28XMP offers 10G connectivity to core networks and servers while still maintaining fast data transfer rates.

Layer 3 Traffic Management

-The DGS-1510-28XMP provides static routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.

-With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router, allowing it to manage external traffic and security.

Extensive Layer 2 Features

-The DGS-1510-28XMP switches are equipped with a complete lineup of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP).

-The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer.

-Network maintenance features include Loopback Detection and Cable Diagnostics; Loopback Detection is used to detect loops created by a specific port or VLAN and will automatically shut down the affected port or VLAN.

-The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and can quickly discover sections of cabling that need to be replaced.

Traffic Classification & QoS

-The DGS-1510-28XMP supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments.

-Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart Switches.

-This technology consolidates data and surveillance video transmission through a single SmartPro switch, sparing businesses the expense of maintaining expensive dedicated hardware and facilities.

-ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.

-The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN.

-With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic.

-Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic.

-As a result, these voice and video packets take precedence over other packets ensuring uninterrupted VoIP for network users.

Secure your Network

-D-Link's innovative Safeguard Engine protects DGS-1510-28XMP against traffic flooding caused by malicious attacks.

-The series also supports 802.1X portbased authentication, allowing the network to be authenticated through external RADIUS servers.

-The DGS-1510-28XMP supports both MAC and Web-based access control. These provide a user-friendly way to alleviate deployment time, giving customers an effective and efficient authentication choice.

-With an Access Control List (ACL), the DGS-1510-28XMP both enhances network security and helps to protect the internal IT network by screening ingress traffic based on any user defined content.

-The DGS-1510-28XMP includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

IPv6 Ready

-The DGS-1510-28XMP is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 ACL/QoS, and IP-MAC-Port Binding (IMPB) to ensure seamless integration of next generation networks.

-The DGS-1510-28XMP also supports an IPv4/v6 dual stack function that allows the switch to act as a bridge between IPv4 and IPv6 networks.

Versatile Management

-The DGS-1510-28XMP supports virtual stacking via D-Link's Single IP Management (SIM), allowing up to 32 devices to be managed via a single IP address.

-This simplifies management of small workgroups or wiring closets while reducing the number of IP addresses needed in your network.

-The DGS-1510-28XMP provides a D-Link Network Assistant Utility and a webbased management interface that enables administrators to easily set up and remotely manage their networks.

-The D-Link Network Assistant Utility allows customers to easily discover and perform initial setup on multiple D-Link products simultaneously.

-This greatly reduces the deployment time for services required by network administrators such as device firmware upgrades, configuration backup and restoration, setting IP addresses, or even solution deployment like ASV.

-The DGS-1510-28XMP also supports fully featured Command Line Interface (CLI) and SNMP MIBs.

-It provides the capability of central management in a large scale network.

-CLI management of the switches is also available via a console port.

-With out-of-band manageability, accessing the switch is still possible even if its network data plane is overwhelmed by bulk or malicious traffic.

Energy Saving

-DGS-1510-28XMP switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology.

-Using the 802.3az Energy Efficient Ethernet standard, the network will automatically decrease power usage when traffic is low.

-For environments not fully supporting the standard, DGS-1510-28XMP switches offer advanced powersaving settings including port shutoff, LED shutoff, and system hibernation based on custom scheduling profiles.

-The profiles can also be applied to the PoE switch so that there is no unnecessary power consumption during off hours.

Technical Specifications

-Bảo hành: 36 tháng.
