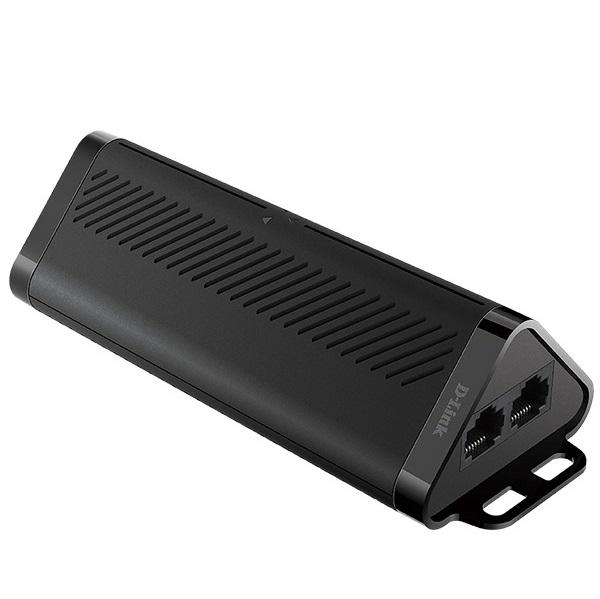

2-port Gigabit PoE Extender D-Link DPE-302GE
-The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power-over-Ethernet connection to be extended up to 500 m.
-It is designed to supply data and PoE power to devices such as PTZ IP cameras or 802.11ac wireless access points over extended distances.
-With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.
Simplicity
-Plug-and-play with no software required.
-Multiple mounting options for flexible placement.
-Provides power over existing network cabling to remote PoE-capable devices.
-Lightweight and compact.
-One PoE input port to dual output ports.
-Three arrow LEDs to indicate the direction of the power and data flow.
Gigabit Connectivity
-Deliver PoE (+) power over 10/100/1000 Mbps connections up to a 500 m1.
-Connect and power Gigabit devices.
-Auto-negotiation on Ethernet ports.
-Full-rate network throughput.
Reliability
-Compliant with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+).
-Compatible with all standard PoE devices.
-Regulates power output to avoid damaging the connected device.
-Withstands operating temperatures of up to 60°C.
-Built-in 4 kV surge protection.
Technical Specifications
| PoE + Data Ports (IN) | 1 x 10/100/1000BASE-T RJ45 port |
| Supports half/full-duplex | |
| PoE + Data Ports (OUT) | 2 x 10/100/1000BASE-T RJ45 port |
| Supports half/full-duplex | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3x Flow Contro | |
| Indicator LEDs (Per Unit) | 1 x PoE In |
| 2 x PoE Out | |
| Solid blue: PoE connected | |
| Blinking blue: PoE budget overload | |
| Dimensions | 155 x 60 x 40 mm |
| Weight | 154 g |
| Power | Power over Ethernet |
| Power Consumption | Maximum: 3.05 W |
| Standby: 1.61 W |
-Bảo hành: 12 tháng.
