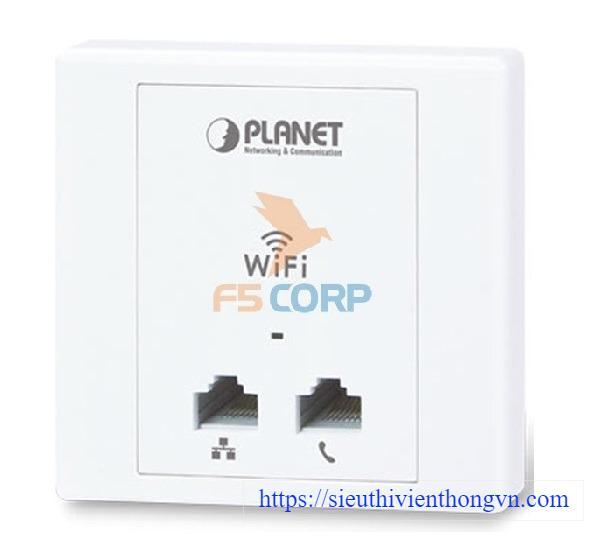

300Mbps 802.11n In-Wall PoE Wireless Access Point PLANET WNAP-W2201A
Standard Compliant Hardware Interface
- Compliant with IEEE 802.11n wireless technology with data rate of up to 300Mbps.
- One 10/100BASE-TX port and one PoE powered device (PD) port.
- One RJ11 port for phone line connection.
- European 86-type and 75-type wall outlet compatibility.
Secure Network Connection
- Advanced security: 64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption), 802.1x.
- Supports wireless MAC address filtering control to limit the connected wireless clients.
Comprehensive Wireless Advanced Features
- Multiple operation modes including AP (Multi-SSIDs), Client, Repeater/Universal Repeater, WDS Point-to-Point (PtP) and WDS Point-to-Multipoint (PtMP).
- Up to 5 multiple-SSIDs to allow users to access different networks through a single AP.
- Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application.
- Supports IAPP (Inter Access Point Protocol) wireless roaming to enable clients to roam across multiple APs.
- Provides 5-level Transmit Power Control to adapt various environments.
- Wireless schedule allows administrators to enforce time-based internet access.
- Self-healing (Schedule Reboot) mechanism for reliable connection.
Easy Deployment & Centralized Management
- Supports AP controller to enable administrator to configure and monitor multiple APs simultaneously
- Flexible deployment with standard 802.3af/at PoE/PD supported.
- Stylish in-wall design perfectly matches the room decoration.
- Step-by-step configuration with intelligent setup wizard and graphical Web-based UI.
- Supports SNMP-based management interface.
- System status monitoring including associated client list and system log.
Specifications
| Hardware Specifications | |
| Interface | PoE Port: 1 x 10/100Mbps auto MDI/MDI-X RJ45 port (rear panel) |
| IEEE 802.3af PoE PD Port | |
| LAN Port: 1 x 10/100Mbps auto MDI/MDI-X RJ45 port | |
| RJ11 Port: Connect to the telephone through the 4-conductor phone line | |
| PoE | 802.3af PoE PD, Class 3 |
| Antenna | Built-in 3dBi antenna x 2 |
| Reset Button | Reset button at side panel (Press over 5 seconds to reset the device to factory default) |
| LED Indicators | PWR/SYS LED |
| Material | Plastic |
| Dimensions (W x D x H) | 86 x 35 x 86 mm |
| Power Requirements | 802.3af/at PoE, 48-56V DC input, 0.35A (max.) |
| Power Consumption | < 10W |
| Wireless interface Specifications | |
| Standard | Compliance with IEEE 802.11b/g/n |
| Frequency Band | Europe -- ETSI: 2.412~2.472GHz |
| Operating Channel | Europe -- ETSI: 1~13 |
| Channel Width | 20 or 20/40MHz |
| Data Transmission Rates | 802.11n (HT40): - 270/243/216/162/108/81/54/27Mbps - 135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic) |
| 802.11n (HT20): - 130/117/104/78/52/39/26/13Mbps - 65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic) | |
| 802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic) | |
| 802.11b: 11/5.5/2/1Mbps (dynamic) | |
| Transmission Distance | 802.11n: up to 70m |
| 802.11g: up to 30m | |
| The estimated transmission distance is based on the theory. | |
| The actual distance will vary in different environments. | |
| Max. RF Power | 802.11n: 17 ± 2dBm |
| 802.11g: 17 ± 2dBm | |
| 802.11b: 18 ± 2dBm | |
| Receiver Sensitivity | IEEE 802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8% |
| IEEE 802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10% | |
| IEEE 802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10% | |
| Data Rate | IEEE 802.11b: 1/2/5.5/11Mbps |
| IEEE 802.11g: 6/9/12/18/24/36/48/54Mbps | |
| IEEE 802.11n: 300 Mbps in 40MHz mode/150Mbps in 20MHz mode | |
| TX Power | Provides 5-level Tx Power Control (100%, 70%, 50%, 35%, 15%) |
| Wireless Management Features | |
| Operation Mode | Standalone AP Managed AP |
| Wireless Mode | AP (Multiple-SSIDs) Client Repeater (WDS+AP) Universal Repeater (AP+Client) WDS PtP Bridge WDS PtMP Bridge |
| Encryption Security | WEP (64-/128-bit) encryption security WPA/WPA2 (TKIP/AES) WPA-PSK/WPA2-PSK (TKIP/AES) 802.1x RADIUS Authentication |
| Wireless Security | Wireless MAC address filtering (up to 20 entries) |
| Supports WPS (Wi-Fi Protected Setup) | |
| SSID broadcast and hide | |
| Environment & Certification | |
| Temperature | Operating: -10 ~ 50 degrees C |
| Storage: -40 ~ 70 degrees C | |
| Humidity | Operating: 10 ~ 90% (non-condensing) |
| Storage: 5 ~ 90% (non-condensing) | |
| Regulatory | CE, RoHS |
