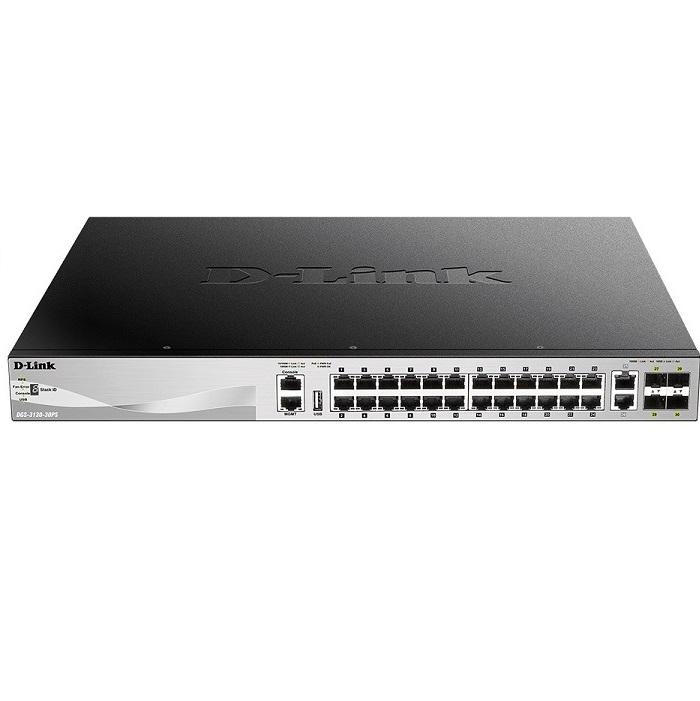

30-Port Lite Layer 3 Stackable Managed PoE Switch D-Link DGS-3130-30PS
Interfaces
- 24 x 10/100/1000BASE-T PoE ports
- 2 x 10GBASE-T ports
- 4 x 10G SFP+ ports
Reliability
- Redundant power supply (RPS) support
- Ethernet Ring Protection Switching (ERPS)
- Embedded 6 kV surge protection on all Gigabit Ethernet ports and on all GE RJ-45 access ports
- IEEE 802.1D/802.1w/802.1s Spanning Tree
- Loopback Detection (LBD)
L3 Features
- Static Route
- RIP/RIPng
- OSPFv2/v3
Operations, Administration and Maintenance
- IEEE 802.3ah Ethernet Link OAM
- IEEE 802.1ag/ITU-T Y.1731 Service OAM
High Bandwidth Stacking
- Physical stack of up to 9 units
- Supports long-distance stacking over fiber
- 80Gbps per device physical stacking bandwidth
Specifications
| Model | DGS-3130-30PS |
| Interface | |
| Ports | 24 x 10/100/1000BASE-T PoE ports 2 x 10GBASE-T ports 4 x 10G SFP+ ports |
| Console Port | 10/100/1000BASE-T RJ-45 port for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 port for out-of-band IP management |
| Stacking Ports | 4 |
| Stacking Cost | 1 |
| USB Ports | 1 x USB 2.0 Type A port |
| Performance | |
| Switching Capacity | 168 Gbps |
| 64-byte Max. Forwarding Rate | 125 Mpps |
| Packet Buffer | 2 MB |
| PoE | |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| PoE Power Budget | 370 W 740 W (with DPS-700 RPS) |
| Physical | |
| Acoustic | Max: 53.4 dB Min: 40.4 dB |
| Weight | 4.66 kg |
| Dimensions | 440 x 350 x 44 mm |
| Power Input | 100 to 240 VAC, 50 to 60 Hz |
| Maximum Power Consumption | 471.67 W (with 370 W PoE load) 892.1 W (with 740 W PoE load) 36.28W (PoE Off) |
| Ventilation | 3 x Smart fans |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -40 to 70 ˚C (-40 to 158 °F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
- Bảo hành: 36 tháng.
