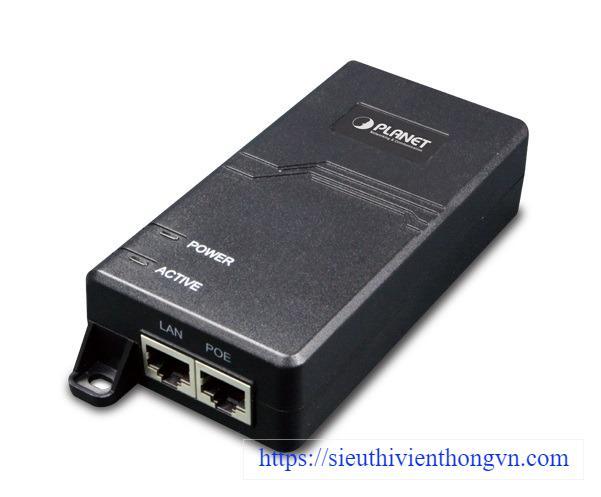

30W High Power over Ethernet Injector PLANET POE-164
Interface
- 2-port RJ45 interfaces
o 1-port Data + Power output
o 1-port Data input
- 1 AC 100-240V input power socket
Power over Ethernet
- 1-port High Power over Ethernet Mid-span PSE
- IEEE 802.3at Power over Ethernet Plus compliant
- Backward compatible with IEEE 802.3af Power over Ethernet
- Supports PoE Power up to 30 watts for PoE port
- Up to 1 IEEE 802.3at device powered
- Provides DC 53V power over RJ45 Ethernet cable to device with Ethernet port
- Auto-detection of PoE IEEE 802.3at/af equipment and devices that could be damaged by incorrect installation
- Remote power feeding up to 100m
Hardware
- All-in-one design with internal power supply
- Compact-size plastic case
- LED indicators for Power LED and Active LED (PoE ready-in-use)
Specifications
| Model | POE-164 |
| Hardware | |
| Interface | Data Input Port: 1 x RJ45 STP PoE (Data + Power) Output Port: 1 x RJ45 STP AC Input Power Socket: 1 |
| LED Indicator | System: Power x 1 (Green) PoE Port: Active, PoE ready-in-use x 1 (Green) |
| Network Cable | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100m 100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100m EIA/TIA-568 100-ohm STP (100m) |
| Data Rate | 10/100Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 182g |
| Unit Output Voltage | DC 53V, 0.6A |
| Power Requirements | 100-240V AC, 50/60Hz, 0.75A |
| Power Consumption | 30W max. |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | DC 53V/30 watts |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 70°C |
| Operating Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
