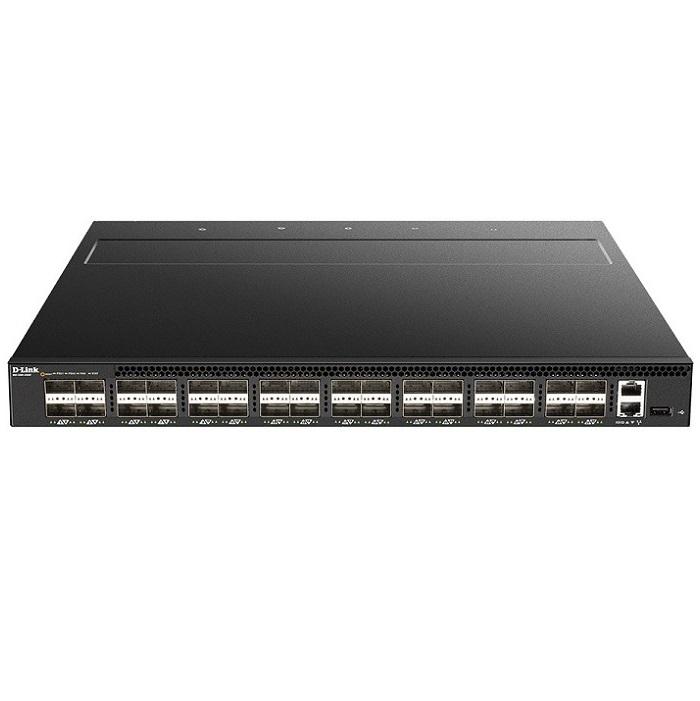

32-Port 40G Data Center Switch D-Link DQS-5000-32S
Interfaces
- 32 x 40G QSFP+ ports
- 1 x USB 2.0 port
- 1 x RJ-45 console port
- 1 x 10/100/1000BASE-T RJ-45 OOB Management port
High Availability and Reliability
- Variety of high-speed interface combinations to meet different network requirements
- Two AC/DC hot-swappable power modules for 1+1 redundancy and load sharing
- Modular, N+1 hot-swappable fan design
Data Center and SDN Virtualization
- Wire-speed, ultra-low latency switching
- Front-to-back and back-to-front airflow
- Supports OpenFlow v1.0/1.3
- Supports Virtual eXtensible LAN (VXLAN) network virtualization
- 802.1Qau, 802.1Qbb, 802.1Qaz Data Center Bridging (DCB) features
Flexibility and Compatibility
- Preloaded with Open Network Install Environment (ONIE) for optimal compatibility with third-party commercial Network Operating Systems (NOSs)
- Open Network Linux (ONL)-ready
Convenient Management
- RJ-45 console port
- Dedicated management port
- Industry-standard CLI
Specifications
| Model | DQS-5000-32S |
| Interface | |
| Ports | 32 x 40G QSFP+ ports 1 x USB 2.0 port |
| Console Port | 1 x RJ-45 console port |
| OOB Management Port | 1 x 10/100/1000BASE-T RJ-45 port |
| Performance | |
| Switching Capacity | 2.56 Tbps |
| Max. Forwarding Rate | 1,428 Mpps (1.428 Bpps) |
| Packet Buffer | 12 MB |
| MAC Address Table | 288K |
| Physical | |
| Power Input | 1+1 redundant power supply design Input: 100 to 240 VAC, 50/60 Hz |
| Maximum Power Consumption | 406 W |
| Heat Dissipation (Max.) | 1385.27 BTU/hr |
| Acoustic | Max: 69.8 dB Min: 59.5 dB |
| Weight | 9 kg |
| Dimensions | 440 x 406 x 44 mm |
| Ventilation | 4 x fans |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
- Bảo hành: 36 tháng.
