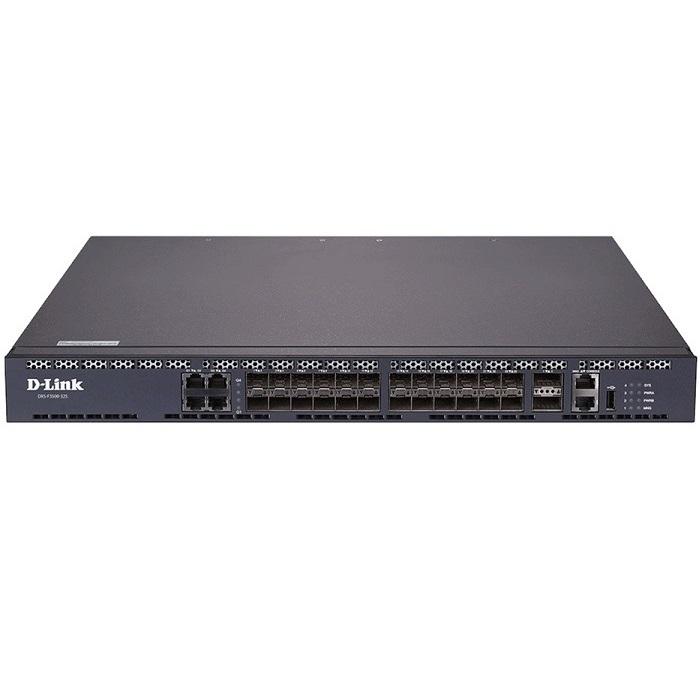

32-Port Data Center TOR Switch D-Link DXS-F3500-32S
- 24 x 10Gbps SFP+ & 2 x 40Gbps QSFP
- 2 x AC/DC Hot-Swappable Power Modules (1+1 w/Load Sharing)
- 5 x Fan Modules
- 640Gbps Switch Capacity
- 480Mpps Max Forwarding Rate
- Multi-Chassis Trunking (MCT) support of Virtual Switching Unit (VSU).
- Lossless Ethernet (via DCB) and 802.1Qau/az/bb
Specifications
| Model | DXS-F3500-32S |
| Interfaces | |
| Interfaces | Up to 32 10-Gig SFP+ or 24 10-Gig SFP+ & 2 40-Gig QSFP Ports |
| Console Port | RJ-45 and Mini USB console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management |
| USB Port | A-Type Port |
| Performance | |
| Switching Capacity | 640 Gbps |
| Max. Forwarding Rate | 480 Mpps |
| Packet Buffer Memory | 9 MB |
| MAC Address Table | 128K |
| Physical | |
| Power input | Dual Redundant AC Power supplies (100 to 230 V AC) Dual Redundant DC Power supply 36V ~ 72V (Available on request) |
| Dimensions (W x D x H) | 442.5×404×44 mm, 1U |
| Operating Temperature | 0° to 50° C |
| Storage Temperature | -20° to 70° C |
| Operating Humidity | 10%-90% non-condensing |
| Storage Humidity | 5%-95% non-condensing |
| Software Features | |
| Layer 2 | MAC Address Table up to 128K entries Flow Control Spanning Tree Protocol Jumbo Frame 802.1AX Link Aggregation ERPS (Ethernet Ring Protection Switching) Port mirroring Flow mirroring VLAN mirroring L2 protocol tunnelling Loopback Detection (LBD) iSCSI awareness |
| L2 Multicast | MLD Snooping IGMP Snooping PIM Snooping |
| L3 Features | ARP Loopback interface UDP helper IPv6 tunneling IPv6 Neighbor Discovery (ND) IGMP Proxy Reporting VRRP v2/v3 IPv6 Tunneling IP Interface |
| L3 Routing | Yes |
| MPLS VPN | LDP protocol MCE P/PE of MPLS VPN MPLS Traffic Engineering (TE) MPLS Operations, Administration, and Maintenance (OAM) |
| VLAN | 802.1Q 802.1v Double VLAN (Q-in-Q) Selective Q-in-Q Port-based VLAN MAC-based VLAN Subnet-based VLAN Private VLAN VLAN group: Max. 4K static VLAN groups, Max. 4094 VIDs ISM VLAN (multicast VLAN) Voice VLAN Auto Surveillance VLAN VLAN trunking GVRP Up to 4094 dynamic VLANs |
| Other Supports | AAA, QoS, Data Center Bridging, ACL, Security |
- Bảo hành: 36 tháng.
