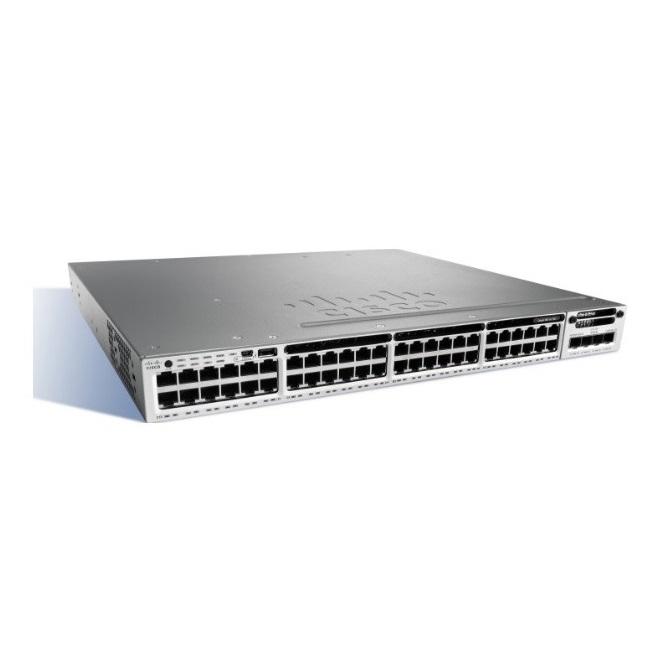

48-Port 10/100/1000 Ethernet PoE+ Switch Cisco Catalyst WS-C3850-48F-S
- Cisco Catalyst 3850 48 Port Full PoE IP Base.
- Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, IP Base feature set.
- Dual redundant, modular power supplies and three modular fans providing redundancy.
- Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor.
- Cisco UPOE with 60W power per port in 1 Rack Unit (RU) form factor.
- Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features.
- Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features.
Specification
| Switching capacity | 176 Gbps |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32000 |
| Total number of IPv4 routes (ARP plus learned routes) | 24000 |
| FNF entries | 48000 flow |
| DRAM | 4 GB |
| Flash | 2 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frame | 9198 bytes |
| Total routed ports per 3850 stack | 208 |
| Forwarding rate | 68.4 Mpps |
| Number of access points per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | Up to 40 Gbps |
| Supported Aironet access point series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Available PoE power | 800W |
| POE budget with 1100W secondary PS | 1900W |
| Dimensions (H x W x D) | 4.45 x 44.5 x 48.8 cm |
| Weight | 8.0 kg |
- Bảo hành: 12 tháng.
