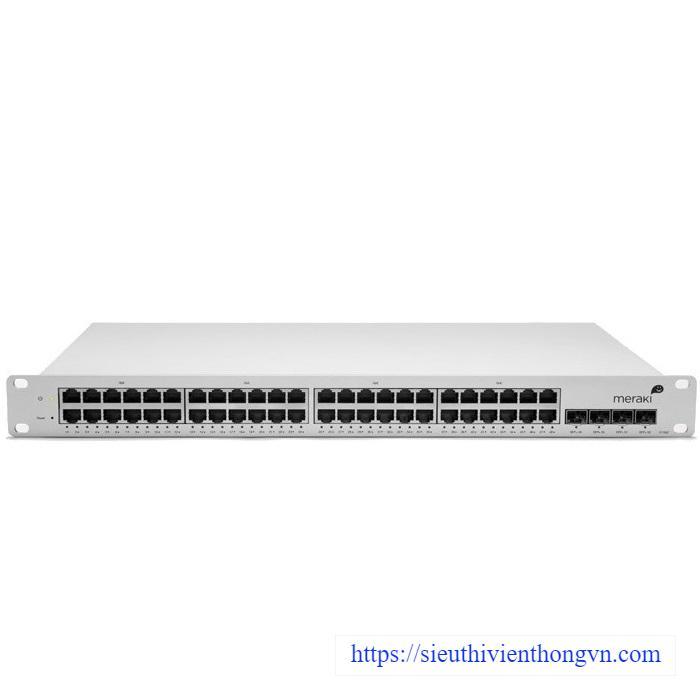

48-Port 10/100/1000Base-T Ethernet PoE Cloud Managed Switch Meraki Cisco MS42P

48-Port 10/100/1000Base-T Ethernet PoE Cloud Managed Switch Meraki Cisco MS42P

  • MS 000001982
  • CISCO
Giá : Liên hệ

48-Port 10/100/1000Base-T Ethernet PoE Cloud Managed Switch Meraki Cisco MS42P

48-Port 10/100/1000Base-T Ethernet PoE Cloud Managed Switch Meraki Cisco MS42P

- 48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ for Gigabit or 10 Gigabit uplink with PoE.

- Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video.

- IEEE 802.1X support for port based network access control.

- MAC-based RADIUS auth and MAC whitelisting

- Voice VLAN support for simplified VoIP deployments.

- Port Mirroring to monitor network traffic.

- DHCP snooping to prevent users from adding unauthorized DHCP servers on the network.

- IGMP Snooping to optimize network performance with multicast traffic.

- Link Aggregation Control Protocol (LACP) for high-capacity trunking, stacking, and increased availability.

- Broadcast storm protection, spanning tree, BPDU guard, root guard, and other safeguards to guard against misconfigurations and reduce convergence time.

- Per port VLAN configuration.

- Multiple administrative roles with sophisticated security policy management.

Specifications

ManagementManaged via the Web via the Meraki cloud management platform
Integrated with Meraki wireless, security appliance, and device management
Zero-touch remote deployment (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMPD allows integration with third party network management solutions
Automatic firmware upgrades
SecurityIntegrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE 802.1X port-based security
MAC-based RADIUS authentication
MAC whitelisting
BPDU guard
Root guard
Remote DiagnosticsEmail and SMS (text) alerts
Cable testing
Live remote packet capture
Aggregated event and configuration change logs with instant search
PerformanceNon-blocking fabric
48 Gbps
2.5 microsecond latency
Jumbo frame support (9600 byte Ethernet frame)
Scalable StackingUnified configuration and monitoring of all switches
Virtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Interfaces48 x 10/100/1000BASE-T Ethernet RJ45
4 x SFP+ for Gigabit or 10 Gigabit uplink
Auto negotiation and crossover detection (auto-MDIX crossover)
Ethernet Switching Capabilities802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4,095 VLANs
802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree
Broadcast storm control
802.1ab Link Layer Discovery Protocol (LLDP)
802.3ad Link aggregation with up to 8 ports per aggregate
Port mirroring
IGMP snooping for multicast filtering
MAC forwarding entries: 8,000
Power over Ethernet (PoE Models)802.3af (PoE) 15.4W per port and 802.3at (PoE+) 25.5W per port (30W max per port). Maximum PoE output: 380W; all ports PoE capable
Pre-standard PoE: supports pre-standard PoE devices
PowerPower input: 100 - 240 VAC, 47-63 Hz
Power consumption: 5 - 500W
MountingRack-mountable with included rack mount hardware
Desktop-mountable with included feet
EnvironmentOperating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Physical DimensionsWeight: 10.6lb. (4.8kg)
Size: 17.4inch (w) x 15.0inch (l) x 1.8inch (h) (44.1 x 38.1 x 4.4 cm)
RegulatoryCSA (US)
IC (Canada)
CE (Europe)
C-Tick (Australia/New Zealand)
RoHS

- Bảo hành: 12 tháng.
