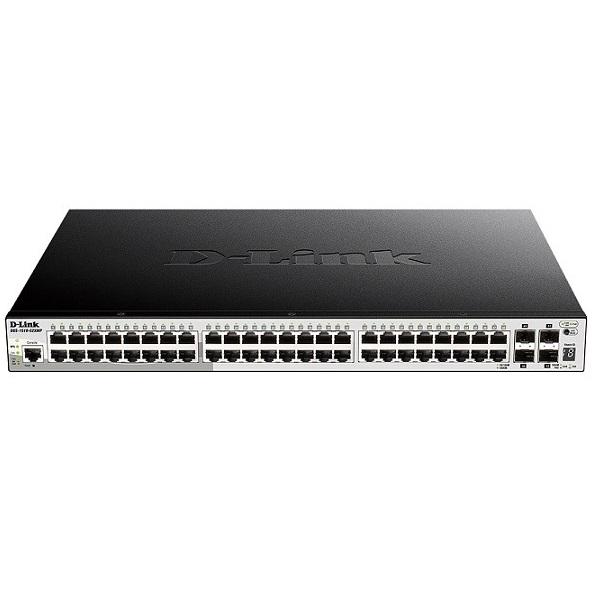

48-Port 10/100/1000Mbps L3 Stackable Managed Switch D-Link DGS-3620-52P/ESI
- The DGS-3620 Series xStack L3 Managed Stackable Gigabit Switches deliver great performance, flexibility, security, multi-layer QoS, and accessibility, along with redundant power solutions for SMBs and enterprises. With high Gigabit port densities, Gigabit SFP, and 10-Gigabit SFP+ support, and advanced software solutions, these switches can act as either departmental access layer devices or core switches to form a multilevel network structured with backbone and centralized high-speed servers.
- 48-port UTP 10/100/1000Mbps 802.3af PoE & 802.3at PoE+, 4-port 10G SFP+.
Specifications
| Model | DGS-3620-52P/ESI |
| Interfaces | |
| Basic switching RJ-45 Ethernet | 48 x 10/100/1000 ports |
| SFP+ module slots | 4 |
| Console port | RS-232 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,100BASE-TX,1000BASE-T,1000BASE-TX |
| Gigabit Ethernet (copper) ports | 48 |
| Compatible memory cards | SD |
| Networking | |
| Support | Head-of-line (HOL) blocking, Flow control support, Port mirroring, Broadcast storm control, DHCP client, DHCP server, IP routing, IGMP snooping, Auto MDI/MDI-X, Spanning tree protocol, VLAN |
| IP address table | 12000 |
| Routing entries | 12000 |
| Data Transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbps |
| Throughput | 130.95 Mpps |
| Number of VLANs | 4000 |
| Number of static routes | 256 |
| Number of IP interfaces | 256 |
| Security | |
| Security algorithms | SSH-2, SSL/TLS |
| Support | MAC address filtering, Access Control List (ACL), SSH/SSL |
| Management | |
| Switch type | Managed network switch |
| Switch layer | L3 |
| Support | Quality of Service (QoS), Multicast, Web-based management, System event log |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports | 48 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Others | |
| AC input voltage | 100-240 V (50/60Hz) |
| Power consumption (max) | 517.1 W |
| Redundant power supply (RPS) | Yes |
| Dimensions | 441 x 310 x 44 mm |
| Weight | 6.3kg |
- Bảo hành 36 tháng.
