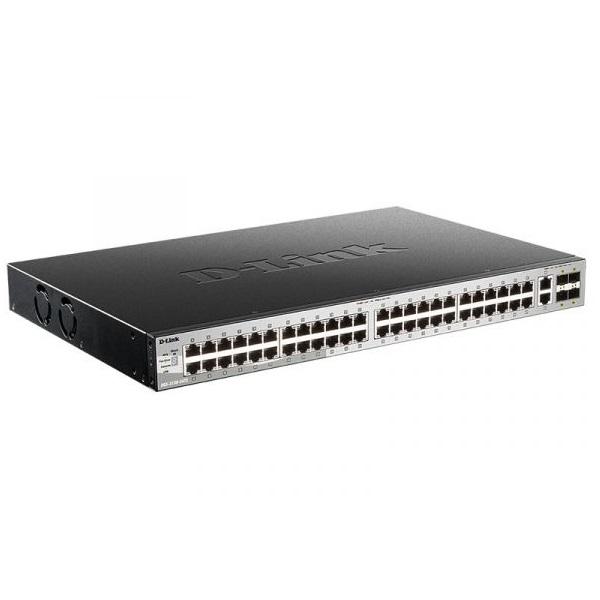

48-port 10/100/1000MbpsLite Layer 3 Stackable Managed Switches D-LINK DGS-3130-54TS
- Layer 3 Lite Stackable Gigabit Managed Switches 48-port 10/100/1000Base-T, 2-port 10GBase-T, 4-port 10G SFP+ (EU 2 round pin + UK 3-pin Power).
- 48 10/100/1000BASE-T non-PoE ports.
- 2 10GBASE-T and 4 10G SFP+ embedded uplink ports.
Reliability
- Redundant power supply (RPS) support.
- Ethernet Ring Protection Switching (ERPS) for single ring topologies.
- Embedded 6 kV surge protection on all Gigabit Ethernet ports.
- IEEE 802.3D/802.1s Spanning Tree.
- Loopback Detection (LBD).
L3 Features
- Static Route.
- RIP.
- RIPng.
Đặc tính kỹ thuật
| Model | DGS-3130-54TS |
| Ports | 48 x 10/100/1000BASE-T ports |
| 2 x 10GBASE-T ports | |
| 4 x 10G SFP+ ports | |
| Optional Redundant Power Supply | DPS-500A |
| Console Port | 10/100/1000BASE-T RJ-45 port for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 port for out-of-band IP management |
| Stacking Ports | 4 |
| Stacking Cost | 2 |
| USB Ports | 1 x USB 2.0 Type A port |
| Performance | |
| Switching Capacity | 216 Gbps |
| 64-Byte Packet Forwarding Rate | 161 Mpps |
| Packet Buffer Memory | 4 MB |
| Physical | |
| MTBF (Hours) | 478,258 hours |
| Acoustics | Max: 51.9 dB |
| Min: 32.7 dB | |
| Heat Dissipation | 172.72 BTU/h |
| Ventilation | 2 x Smart fan |
| Emission (EMI) | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC |
| Safety | CB, cUL, BSMI, CCC |
| Power Input | 100 to 240 VAC, 50 to 60 Hz |
| Max Power Consumption | 50.62W |
| Dimensions | 440 x 290 x 44 mm |
| Weight | 3.72 kg |
- Bảo hành: 36 tháng.
