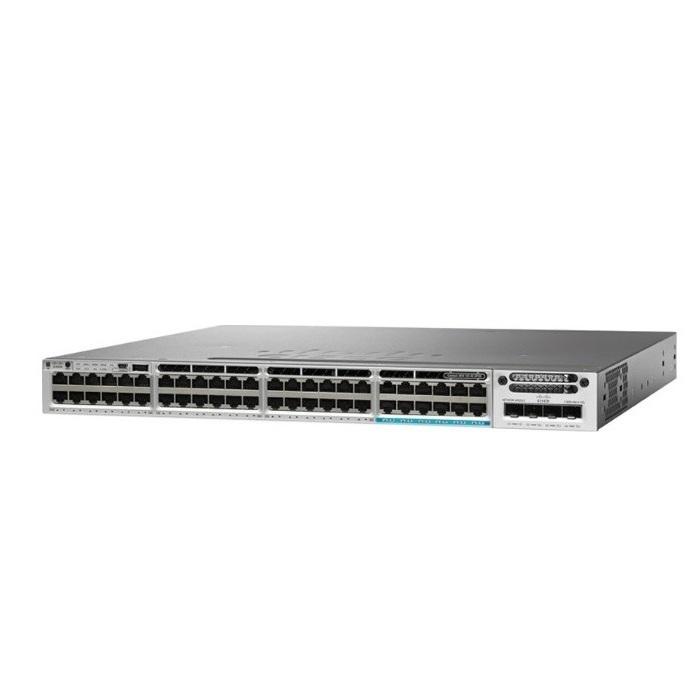

48-Port Ethernet UPOE Switch Cisco Catalyst WS-C3850-48U-E
- Cisco Catalyst 3850 48 Port UPOE IP Services.
- Cisco next generation Catalyst WS-C3850-48U-E is stackable enterprise level switch and integrated with 48 Ethernet UPOE ports in IP service feature set.
- WS-C3850-48U-E enables sophisticated layer 2-4 switching capability by providing the optimal solution for access layer and aggregation layer.
Specification
| Model info | WS-C3850-48U-E |
| Enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (UPOE) |
| Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 800W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 130.95Mpps |
| FNF (Flexible NetFlow) entries | 48,000 flows |
| Maximum VLANs IDs | 4000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4G |
| Flash Memory | 2G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Dimension (WxDxH) | 44.5x44.5x4.45cm |
| Weight | 7.9 kg |
- Bảo hảnh: 12 tháng.
