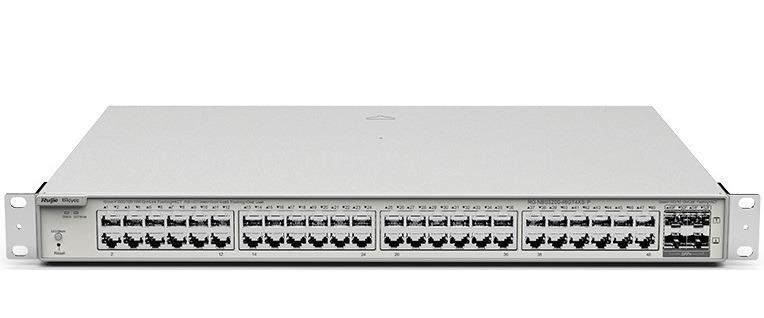

48-port Gigabit Managed PoE Switch RUIJIE RG-NBS3200-48GT4XS-P
- 48-Port 10G L2 Managed PoE Switch
- 48 Gigabit RJ45 PoE/PoE+ Ports
- 4 *10G SFP+ Slots
- 370W PoE Power budget
- 19-inch Rack-mountable Steel Case
Specifications
| Model | RG-NBS3200-48GT4XS-P |
| Ports | 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 132Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection Hardware CPP |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| PoE | 48 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 370W Maximum output power per port: 30W |
| Dimensions | 440 x 357.6 x 43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |
- Bảo hành: 3 năm.
