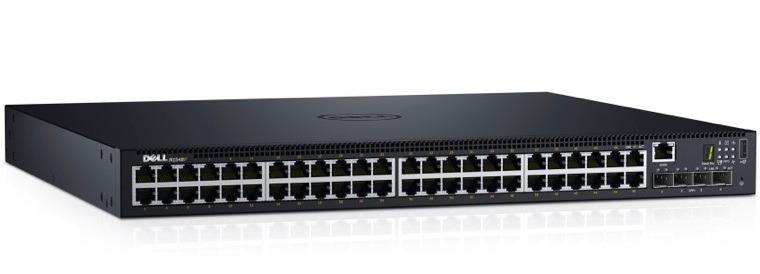

48-port Gigabit PoE Managed Switch DELL N1548P
Product Code: 210-AEWB
- 48 RJ45 10/100/1000Mb PoE+ auto-sensing ports (optional external power supply needed to provide power to all 48 ports at 30.8 watts)
- (4) Four integrated 10GbE SFP+ ports
- (1) One integrated power supply (600W AC)
Đặc tính kỹ thuật
| Model | N1548P |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet | PoE+ |
| PoE Budget | 30.8 W |
| Performance | Switching fabric bandwidth: 176 Gbps Forwarding performance: 164 Mpps |
| MAC Address Table Size | 16000 entries |
| Capacity | Virtual interfaces (VLANs): 512 ARP entries: 1024 NDP entries: 400 Priority queues per port: 8 IPv4 routes (static): 256 IPv6 routes (static): 128 IPv4 routes (dynamic): 256 VLAN routing interfaces: 128 ACL: 100 |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | Telnet, TFTP |
| Encryption Algorithm | MD5, AES, SSL, TLS |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, Broadcast Storm Control, front to back airflow, redundant fans |
| RAM | 1GB |
| Flash Memory | 256MB |
| Interfaces | 48 x Gigabit LAN RJ-45 4 x 10Gbit LAN SFP+ 1 x serial (RS-232) RJ-45 management 1 x USB Type A |
| Power Device | Internal power supply |
| Power Provided | 600W |
| Dimensions | 44 x 38.7 x 4.32 cm (WxDxH) |
| Weight | 7kg |
- Bảo hành: 03 năm.
