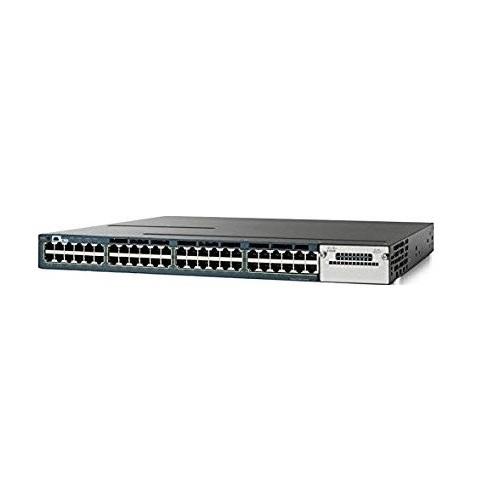

48-Port GigE Switch Cisco Catalyst WS-C3560X-48PF-E
- Catalyst 3560X 48 Port Full PoE IP Services.
- 48 x10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules.
- 800W POE power budget with up to 30W per port.
- Dual redundant, modular power supplies and fans.
- IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR.
- 64MB flash and 256 memory (DRAM).
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port.
Đặc tính kỹ thuật
| Manufacturer | Cisco Systems, Inc |
| Product Type | Switch - 48 ports - L3 - Managed |
| Form Factor | Rack mountable - 1U |
| Switch Ports | 48 x 10/100/1000 Ethernet POE+ Ports |
| Power Over Ethernet (PoE) | Yes |
| Routing Protocol | OSPF, Eigrp, PIM, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Dimensions (WxDxH) | 44.5 x 46 x 4.5 cm |
| Weight | 7.4 kg |
- Bảo hành: 12 tháng.
