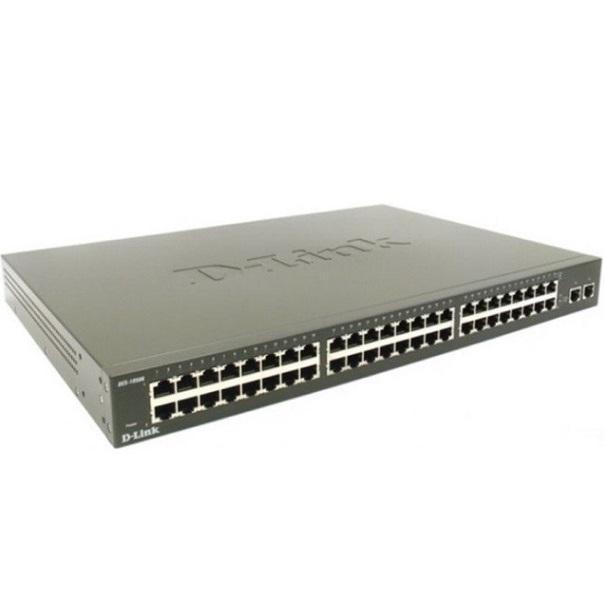

48-Port Unmanaged Ethernet Switch D-Link DES-1050G
- 48 10/100Mbps Copper Ethernet Ports
- 2 10/100/1000Mbps Copper Gigabit Ports
- 13.6Gbps Switch Capacity
- Auto MDI/MDIX for Each Port
- Full/Half-Duplex Support for Each Port
- 802.3x Flow Control Per Port for Data Loss Protection
- Secure Store-and-Forward Switching Scheme
- Standard 19-Inch Rack-Mount Size
Specifications
| Model | DES-1050G |
| General | |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE 802.3 Nway auto-negotiation IEEE 802.3x Flow Control |
| Number of Ports | 48 10/100BASE-TX ports with auto MDI/MDIX 2 10/100/1000BASE-T ports with auto MDI/MDIX |
| Full/Half Duplex Support | Ethernet/Fast Ethernet: full/half duplex Gigabit: full duplex |
| Flow Control | Half duplex mode: back pressure Full duplex mode: 802.3x flow control |
| LED Report | Per device: Power Per port: Link/Act |
| Performance | |
| Switch Fabric | 13.6Gbps |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K entries per device |
| MAC Address Learning | Automatic update |
| RAM Buffer | 3.2MBit per device |
| Packet Filtering/ Forwarding Rate | 10BASE-T: 14,880 pps per port 100BASE-TX: 148,800 pps per port Gigabit: 1,488,000 pps per port |
| Physical & Environmental | |
| Dimensions (W x H x D) | 441 (W) x 309 (D) x 44 (H) mm |
| Weight | 3.7kg |
| Power Input | 100 to 240 VAC, 50/60 Hz Internal universal power supply |
| Power Consumption | 24W |
| Temperature | Operating: 0 to 40 °C Storage: -25 to 55 °C |
| Humidity | 0% to 95% non-condensing |
- Bảo hành: 36 tháng.
