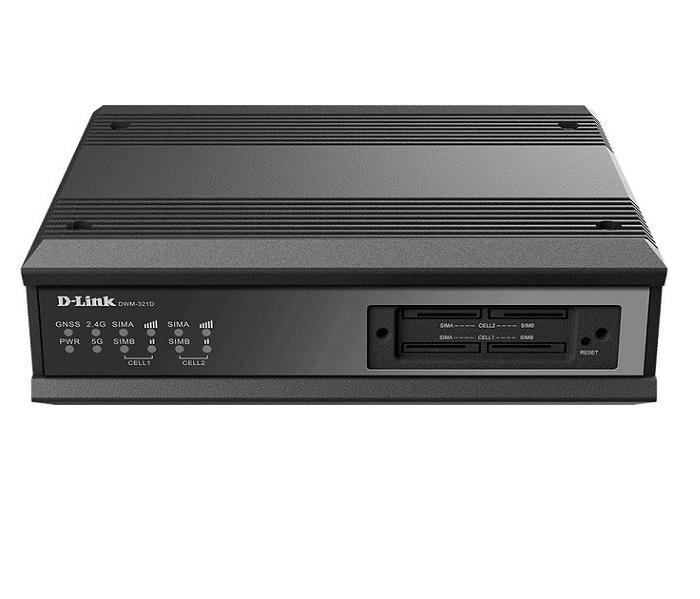

4G LTE In-Vehicle Hotspot D-Link DWM-321
- Suitable for delivering in-Vehicle 4G/LTE mobile broadband with downlink speeds up to 150 Mbps
- Dual-band 802.11ac Wi-Fi for combined speeds up to AC1200 speeds (300 + 866 Mbps)
- 3 x 10/100/1000 Ethernet LAN ports
- 2 x LTE modems and 4 x SIM card slots for multi-network capacity and failover
- Supports WPA/WPA2, WPA-PSK, WPA2-PSK, and 802.1x encryption
- Advanced VPN Features including VPN tunnels for IPSec, OpenVPN, L2TP (over IPSec), PPTP, and GRE
- Rugged, robust zinc-plated steel casing protects internal components against physical damage
- Captive portal allows for individual user access control and authentication
- Includes support for GPS/GLONASS/Galileo/BeiDou GPS
- IGN (Ignition Sense) power control ideal for in-vehicle use
- Supports D-Link ECS (DECS) for remote management via web browser
Specifications
| Model | DWM-321 |
| Device Interfaces | One 10/100/1000 Ethernet WAN/LAN port Two 10/100/1000 Ethernet LAN ports DI/DO/TX/RX/Grounding ports One DC power input D1: Four SIM slots (Two LTE Modem) A1: Two SIM slots (One LTE Modem) IGN (Ignition Sense) Power Control function |
| Antennas | D1: Four LTE external antennas (Two LTE Modem) A1: Two LTE external antennas (One LTE Modem) Two Wi-Fi antennas |
| Standards | IEEE 802.11ac/n/g/b/a |
| Wi-Fi Data Rates | Up to 866 Mbps with 802.11ac clients Up to 300 Mbps with 802.11n clients 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode 1/2/5.5/11 Mbps in 802.11b mode |
| Functionality | |
| Wireless Security Features | WPA/WPA2/WPA-PSK/WPA2-PSK/802.1x encryption |
| Firewall | Network Address Translation (NAT) Stateful Packet Inspection Firewall with Stealth Mode IPS Access Control: Packet Filters Application Filter URL Blocking MAC Address Control Content Filter |
| Advanced Features | QoS engine (Quality of Service) SNMP Support Port Forwarding Virtual Server GNSS Web-based UI TR-069 CPE WAN Management Protocol DMZ & Pass Through Captive Portal Load Balance DECS |
| VPN | L2TP/OpenVPN/PPTP/IPSEC/GRE VPN |
| Physical | |
| Power | DC 9 V / 2.7 A ~ 36 V / 0.7 A |
| Dimensions | 160 x 125 x 47 mm |
| Weight | 865 g |
| Temperature | Operating: -30 to 60 °C (-22 to 158 °F) Storage: -40 to 85 °C (-40 to 185 °F) |
| Humidity | Operating: 10% to 95% non-condensing Storage: 0 to 95% non-condensing |
- Bảo hành: 24 tháng.
