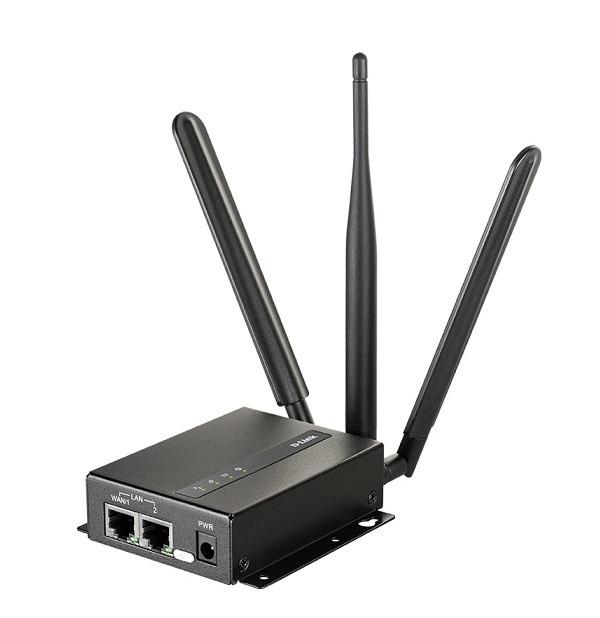

4G LTE M2M Router D-Link DWM-313
- 3G/4G LTE Mobile Connectivity deployable for mobile broadband connectivity
- Transfer speeds of up to 150 Mbps for fast internet access and data transfer
- 1 x WAN/LAN 10/100 Ethernet port
- 1 x LAN 10/100 Ethernet port
- Dual SIM slots allows the use of multiple providers and offers SIM failover
- Dual-active firewalls (NAT/SPI) control traffic and resist attacks over the internet
- Formidable privacy with easy-to-establish VPN options, including support for IPSec/OpenVPN/PPTP/L2TP/GRE VPN
- SNMP facilities easy deployment and simple management
- TR-069 CPE WAN management protocol support enables convenient remote management
- Wide humidity and temperature tolerance of -30 to 60°C
- Zinc-plated steel case is durable, ensuring an extended product life
Specifications
| Model | DWM-313 |
| Device Interfaces | One 10/100 Ethernet WAN/LAN port One 10/100 Ethernet LAN port Micro SD card slot 2 SIM slots (Micro-3FF) DC input USB port for RS-232 (TxD, RxD) |
| Antennas | Two detachable 3G/4G antennas One detachable Wi-Fi antenna (optional accessory |
| Standards | IEEE 802.11n/g/b IEEE 802.3i IEEE 802.3u |
| Wi-Fi Data Rates | Up to 150 Mbps with 802.11n clients 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode 1/2/5.5/11 Mbps in 802.11b mode |
| Advanced Features | SNMP Support Web-based UI TR-069 CPE WAN Management Protocol D-ECS (D-Link Edge Cloud Solution) |
| Functionality | |
| Wireless Security Features | 64/128-bit WEP (Wired Equivalent Privacy) 802.11 128-bit AES |
| Firewall | Network Address Translation (NAT) Stateful Packet Inspection (SPI) |
| QoS | Low, normal, and high priority levels according to source/destination IP or destination port |
| VPN | IPSec/OpenVPN/PPTP/L2TP/GRE VPN |
| SMS | New incoming SMS notification SMS compose, send, read, forward, reply, and delete |
| Physical | |
| LED Status Indicators | Network Connectivity Wi-Fi Signal Strength RS-232 |
| Power | 5V / 2 A adapter Flexible input: DC 5V /2 A ~ 18 V / 0.7 A |
| Enclosure | Corrosion-resistant zinc-plated steel |
| Dimensions | 93 x 70 x 23.6 mm |
| Weight | 210 g |
| Temperature | Operating: -30 to 60 °C (-22 to 140 °F) Storage: -40 to 85 °C (-40 to 185 °F) |
| Humidity | Operating: 10% to 90% non-condensing Storage: 0 to 95% non-condensing |
- Bảo hành: 24 tháng.
