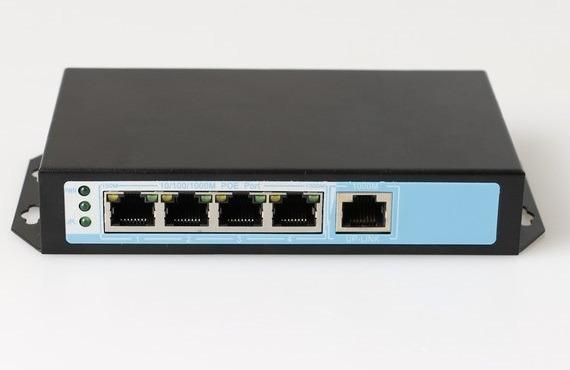

4-Port 10/100/1000Mbps PoE Switch NETONE NO-AFG-41 (65Watt)
- Bao gồm: 1 port Uplink Gigabit Ethernet, 4 port Gigabit PoE, công suất mỗi port 15.4W, tổng công suất 65W.
- 4 Port Gigabit POE Switch, 4 Port Gigabit PoE and 1 Gigabit Ethernet Uplink
- Bandwidth:10Gbps
- PoE Line:End-Span(12+,36-)
- IEEE802.3af(15.4W)
- Power: 48V1.25A
Features
- Support power by a Cat.5 Ethernet cable wireless access point (AP) and network surveillance cameras
- 1～4 port support IEEE802.3af standard power
- 4*10/100/1000 Mbps RJ45 ports with Auto-negotiation
- Complies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standard
- Flow control:IEEE 802.3x flow control for Full-duplex Mode, Backpressure for Half-duplex Mode
- Auto-MDI/MDIX
- Supports uplink port Lightning protection (port 5 to reach two level lightning protection requirements)
- Supports PoE power up to 65W for all PoE ports（1～4 Port）
- Supports PoE power up to 15.4W for each PoE port
- Adopts store and forward switching mechanism
- All ports support wire-speed switching, frame size in the range of 64 to 1536 can achieve wire-speed
- Fanless design, Natural cooling
- Small, compact and quiet design suitable for placement on the desktop or wall
- Zero configuration power adapter is automatically supplied to the adaptive equipment
Application
- Million HD monitors transmission and power
- Wireless AP layout transmission and power
- VoIP transmission, Intelligent Home Systems
- Urban Intelligent Traffic Monitoring System (ITS), Safe City, Wireless City
- Highway monitoring system, Electronic road monitoring, Capture system
- Large industrial enterprise security monitoring systems, network multifunction system
- Remote multimedia teaching / Campus monitoring, Video conferencing systems
- Building intercom, Wireless communications, Video surveillance
Specifications
Product Name | 4-Port AF PoE Switch with 4 PoE Ports and 1 Uplink Ethernet |
Model | NO-AFG-41 |
Connector Type | 4x 10/100/1000M copper cable RJ45 ports(4 PoE ports+1 Uplink) |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
Bandwidth | 10Gbps (non-blocking) |
Address Database Size | 8K |
MTBF | 190,000 hours (about 21 years) |
Forwarding Mode | Store-And-Forward |
Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
LED Display | System: power supply; Every Port: connecting, PoE working status |
Power Supply | Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
PoE Ports | Port 1-4 support POE |
PoE Port Power | 15.4W for each POE port |
PoE Standard | IEEE 802.3af |
PoE Feature | All ports support MDI/MDIX |
Working Environment | Operating Temperature: -30 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 5% ~ 95%, non-condensing |
Certification | CE Mark,FCC,RoHS |
Transmission Distance | Data transmission distance: 100m |
Product Size | 15.5*8*3cm, 0.38kg |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
