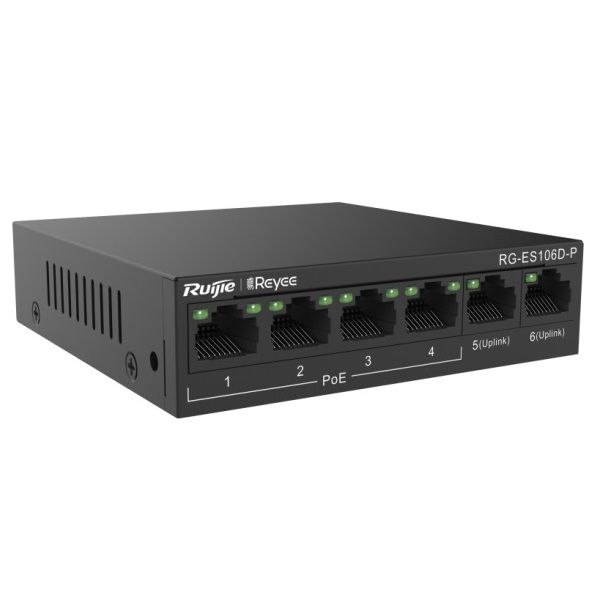

4-Port 10/100Mbps PoE + 2-Port 10/100Mbps Uplink Unmanaged Switch RUIJIE RG-ES106D-P
- Support 4 x 10/100 Mbps PoE/PoE+ Ports and 2 x 10/100 Mbps uplink ports.
- Support auto MDI/MDIX.
- Switching capacity: 1.2Gbps.
- Package forwarding rate: 0.89Mpps.
- Power supply: 100-240V AC.
- PoE power budget: 58W.
Specifications
| Ports | 4 x 10/100 Mbps PoE/PoE+ Ports 2 x 10/100 Mbps uplink ports |
| Operating mode | Half-duplex, full-duplex, auto-negotiation mode Support auto MDI/MDIX |
| Switching capacity | 1.2Gbps |
| Package forwarding rate | 0.89Mpps |
| Power supply | 100-240V AC |
| Surge protection | Adapter: Common mode: ±4 kV Differential mode: ±2 kV Network ports: Non-PoE ports: ±4 kV PoE ports: ±6 kV |
| Port Mode | “Flow Control On” “Flow Control Off” “Port Isolation” from left to right |
| Power consumption | 67W |
| PoE power budget | 58W |
| Dimensions (W x D x H) | 100 x 100 x 26 mm |
| Operating temperature | 0℃ to 45℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
- Bảo hành: 3 năm.
