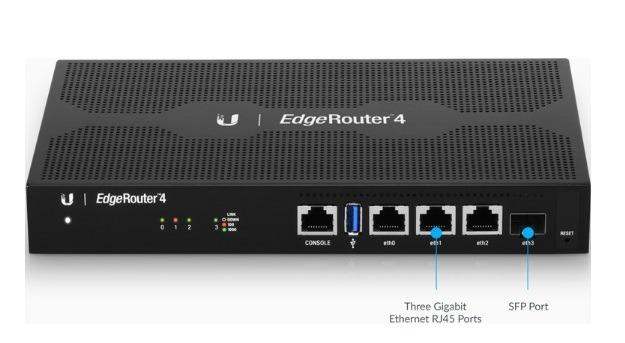

4-Port Gigabit with 1 SFP Port Router Ubiquiti EdgeRouter 4
- The EdgeRouter 4 offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 4 Gbps.
- The EdgeRouter 4 can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
- The EdgeRouter 4 is supported and managed by UNMS (Ubiquiti Network Management System), a comprehensive controller with an intuitive UI.
- A single control plane manages registered EdgeMAX devices across multiple sites.
- (3) Gigabit RJ45 routing ports.
- (1) Gigabit SFP port.
- 3.4 million packets per second for 64-byte packets.
- 4 Gbps for packets 128 bytes or larger in size.
- Silent, fanless operation.
- Compact, durable metal case.
Đặc tính kỹ thuật
| Dimensions | 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22inch) |
| Weight | 795 g (1.75 lb) |
| Max. Power Consumption | 13W |
| Power Method | Universal AC Power Cord (C13) |
| Power Supply | Internal AC/DC Power Adapter, 30W DC |
| Supported Voltage Range | 100 - 240VAC, 50/60 Hz |
| Button | Reset |
| LEDs | Data Ports: Speed/Link/Activity SFP Data Port: Link/Activity |
| Interfaces | Management: (1) RJ45 Serial Port/ (4) Ethernet Ports (Default eth0) Networking: (3) 10/100/1000 RJ45 Ports/ (1) 1 Gbps SFP Port |
| Layer 3 Forwarding Performance | Packet Size: 64 Bytes: 3,400,000pps Packet Size: 512 Bytes or Larger: 4 Gbps (Line Rate) |
| Processor | 4-Core 1 GHz, MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| Mounting | Wall, Rack |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
- Thương hiệu Ubiquiti của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
