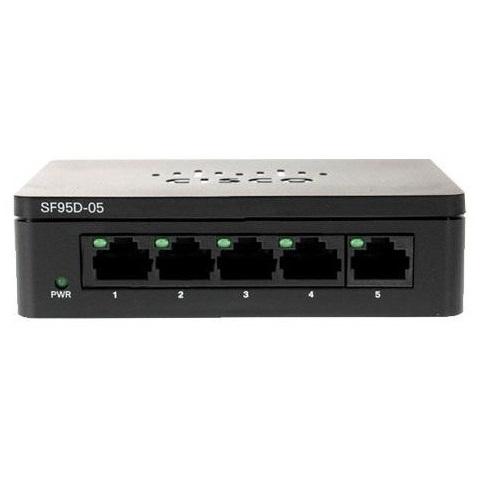

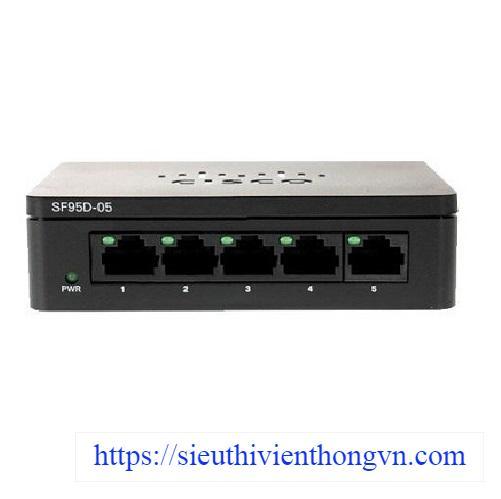

5-Port 10/100 Mbps Switch Cisco SF95D-05-AS
- 5 Port 10/100 Mbps with MDI and MDI crossover (MDI-X); auto negotiated port.
- Performance: Switch capacity 1 Gbps, Forwarding capacity (base on 64-byte packets) 0.74 mpps.
- Layer 2 Switching: HOL (Head of line) blocking prevention.
- QoS: Priority levels 4 hardware queues, scheduling priority queuing and weighted round-robin (WRR), class of service 802.1p priority based.
Specifications
| Product ID | SF95D-05-AS |
| Ports | 5 RJ-45 connectors for 10BASE-T/100BASE-TX |
| Switching capacity | 1 Gbps |
| Forwarding capacity | 0.74 mpps |
| Jumbo frame | 9216 bytes |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| QoS | 802.1p priority based, hardware queues, priority queuing and weighted round-robin (WRR) |
| Cabling type | Category 5e or better |
| LED indicators | System/PWR, link/activity, 100M*, cable diagnostics, loop detection, gigabit,* mini-GBIC* (*if present) |
| Mounting options | Desktop or rack mount |
| Power supply | DC 12V, 500mA |
| Dimensions | 160 x 30 x 90 mm |
| Weight | 0.38 kg |
- Bảo hành: 12 tháng.
