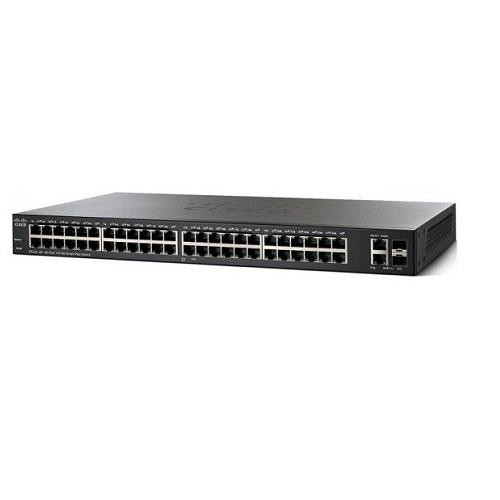

50-port Gigabit Smart Switch Cisco SG200-50

50-port Gigabit Smart Switch Cisco SG200-50

  • MS 000011449
  • CISCO
Giá : Liên hệ

50-port Gigabit Smart Switch Cisco SG200-50

50-port Gigabit Smart Switch Cisco SG200-50

Part number: SLM2048T-EU

The 200 Series Small Business SG200-50 Ethernet Smart Switch from Cisco is an Ethernet network switch designed to give you better management, security, and quality of service features than an unmanaged or consumer-grade switch at a lower cost than a managed switch. This particular switch features a total of 50 Gigabit Ethernet ports; however, two of those ports are a combination of RJ-45 Gigabit Ethernet and mini Gigabit Interface Converter (mini-GBIC) expansion slots. With those expansions slots, you have the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch.

In addition to these ports, the switch includes Quality of Service features that allow you to prioritize latency-sensitive applications, such as IP telephony or video surveillance. The switch also provides native support for both IPv4 and IPv6, which allows you to take advantage of the latter protocol as it becomes more prevalent and widespread in the future. So as to safeguard your network, the switch utilizes IEEE 802.1X port security to control access to your network and reduce the risk of a security breach.

In setting up the switch, it can discover all connected Cisco devices on your network, share info between these devices, and also give you information, such as Serial numbers, IP addresses, and the like for quick deployments. Designed to be power-efficient, the switch can reduce the amount of power to any port when that port isn't being used and will reduce the power it sends through an Ethernet cable when it detects that the cable is short.

Easy Configuration and Management

This switch is designed to be easy to deploy and use by small businesses or the partners that serve them. Simple-to-use web-based interfaces reduce the time it takes to deploy, manage, and troubleshoot your network
·Cisco Discovery Protocol simplifies setup by discovering all connected Cisco devices and allowing them to share information
·Cisco FindIT Network Discovery Utility works through a simple toolbar on the user's web browser to discover Cisco devices on the network and display basic information, such as serial numbers and IP addresses, to aid in the configuration and speed the deployment of Cisco Small Business products

Performance and Reliability

This switch has been tested to deliver the high availability and performance you would expect from a Cisco switch and help you prevent costly downtime. This switch can speed up file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on this or other Cisco 200 Series switches, you can address all of your business communication and connectivity needs and reduce the total cost of ownership of your technology infrastructure

Network Security

This switch provides the basic security and network management features that you need to maintain a level of security for your business, keep unauthorized users off the network, and protect your business data. The switch provides integrated security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network

IP Telephony Support

This switch includes Quality of Service (QoS) features to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services. For example, Auto Voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic

IPv6 Support

This and other Cisco 200 Series switches provide native support for IPv6 alongside traditional IPv4. That means you can take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment

An Energy-Efficient Solution

This switch is designed to be eco-friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include the following:
·Automatic power down on Gigabit ports when a link is not active
·Embedded intelligence to adjust power based on cable length

Additional Gigabit Ethernet Ports

The switch features a total of 50 Gigabit Ethernet ports, two of which are also mini-Gigabit Interface Converter (mini-GBIC) expansion slots that give you the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of your switch, you have more flexibility to design your network around your unique business environment, and to easily connect switches on different floors or across the business.



Specifications

Performance

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3ad LACP

IEEE 802.3z Gigabit Ethernet

IEEE 802.3x Flow Control

IEEE 802.1D (STP)

IEEE 802.1Q/p VLAN

IEEE 802.1w RSTP

IEEE 802.1X Port Access Authentication

IEEE 802.3af

RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416

Protocols

TCP/IP

Layer 2 Switching

Spanning Tree:

Standard 802.1d STP support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Port Grouping:

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

·Up to 4 groups

·Up to 4 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN:

Support for up to 128 VLANs simultaneously (out of 4096 VLAN IDs)

Port-based and 802.1Q tag-based VLANs

Voice VLAN:

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol (IGMP) Versions 1 and 2 Snooping:

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups

Head-of-Line (HOL) blocking:

HOL blocking prevention

Security

IEEE 802.1X (Authenticator Role):

802.1X: RADIUS authentication and accounting, MD5 hash

Supports time-based 802.1X

Dynamic VLAN assignment

Port Security:

Locks MAC addresses to ports, and limits the number of learned MAC addresses



Storm Control:

Broadcast, multicast, and unknown unicast

Quality of Service

Priority Levels:

4 hardware queues

Scheduling:

Strict priority and weighted round-robin (WRR)

Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of Service:

Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate Limiting:

Ingress policer, per VLAN, and per port

IPv6

IPv6:

IPv6 host mode

IPv6 over Ethernet

Dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND)

IPv6 stateless address auto-configuration

Path maximum transmission unit (MTU) discovery

Duplicate address detection (DAD)

Internet Control Message Protocol (ICMP) version 6

IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) support

IPv6 QoS

Prioritize IPv6 packets in hardware

Multicast Listener Discovery (MLD) Snooping:

Deliver IPv6 Multicast Packets only to the Required Receivers



IPv6 Applications:

Web, ping, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), RADIUS, syslog, DNS client



IPv6 RFCs Supported:

RFC 2463: ICMP version 6

RFC 3513: IPv6 address architecture

RFC 4291: IPv6 addressing architecture

RFC 2460: IPv6 specification

RFC 2461: Neighbor discovery for IPv6

RFC 2462: IPv6 stateless address auto-configuration

RFC 1981: Path maximum transmission unit (MTU) discovery

RFC 4007: IPv6 scoped address architecture

RFC 3484: Default address selection mechanism

RFC 4214: ISATAP tunneling

RFC 4293: MIB IPv6: Textual conventions and general group

RFC 3595: Textual conventions for IPv6 flow label

Management

Web User Interface

Remote Monitoring (RMON)

IPv4 and IPv6

Firmware upgrade

Port mirroring

VLAN mirroring

DHCP (Options 66 and 67)

Text-editable config files

Smartports

Cloud services

Localization

Other management: HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog

Power Management

Energy Detect

Cable length detection

MAC Address Table Size

Up to 8000 MAC addresses

Frame Size

Frame sizes up to 10KB supported

Ports

50x  Total Ports

48x  RJ-45 10/100/1000 Ethernet Ports

2x  RJ-45 10/100/1000 and SFP Combo Ports

Buttons

Reset Button

Cable

Requires:

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

Buffer

Packet Buffer:

2 @ 8Mb

Fan

2x

Acoustic Noise

41.7 dB

MTBF

237,610 hours @ 40°C

General

Form Factor

1U Rack mount

System Requirements

Minimum:

·Web browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later

·Category 5 Ethernet network cable ·TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network

Certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class

Power Requirements

110V to 240V, 12V/8.33A, 50 to 60HZ

Power Consumption

Up to 110V/0.569A/61.8W and 220V/0.296A/61.4W

Dimensions (WxHxD)

17.35 x 1.73 x 10.1' / 44 x 4.4 x 25.7 cm

Weight

8.73 lb / 3.96kg

-        Bảo hành: 12 tháng.
