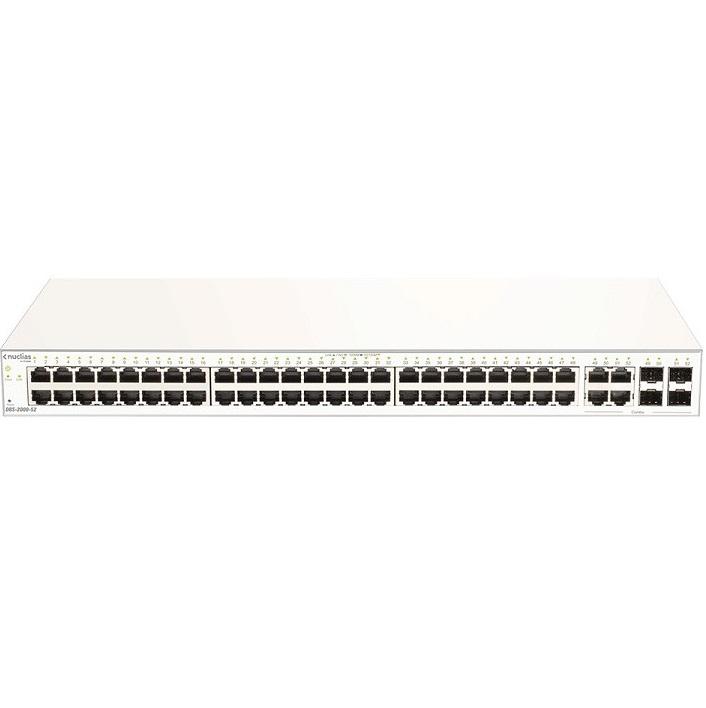

52-port Gigabit Nuclias Cloud-Managed Switch D-Link DBS-2000-52
- 48 x 10/100/1000BASE-T ports
- 4 x 10/100/1000BASE-T ports
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 Encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Specifications
| Model | DBS-2000-52 |
| Hardware Version | A1 |
| General | |
| Number of Ports | 48 x 10/100/1000 BASE-T 4 x 1000 Mbps combo |
| Port Functions | IEEE 802.3 compliant IEEE 802.3u/802.3z compliant IEEE 802.3ab compliant IEEE 802.3af/802.3at compliant IEEE 802.3x Flow Control Supports manual/auto MDI/MDIX configuration Supports half/full-duplex operation IEEE 802.3az compliant |
| Performance | |
| Switching Capacity | 104 Gbps |
| Maximum Forwarding Rate | 77.4 Mpps |
| MAC Address Table Size | 16K Entries |
| Packet Buffer | 12 Mbits |
| Flash Memory | 32 MB |
| Physical | |
| Acoustic | 0 dB(A) |
| Weight | 3.46 kg |
| Dimensions | 440 x 210 x 44 mm |
| Power Input | 100 to 240 V AC, 50/60 Hz internal power supply |
| Maximum Power Consumption | 34.85 W |
| Heat Dissipation | 118.92 BTU/hr |
| Ventilation | Fanless |
| Operating Temperature | -5 to 50 °C (23 to 122 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
| Software | |
| VLAN | 802.1Q Tagged VLAN Management VLAN Voice VLAN VLAN Group: Supports 256 static VLAN groups |
| L2 Features | Flow Control Jumbo Frames IGMP Snooping Cable Diagnostics LLDP Spanning Tree Protocol 802.3ad Link Aggregation |
| Security | SSL DHCP Server Screening Port Security Access Control List (ACL): Max # of Entries: 768 |
| Management | Cloud-based through Nuclias Nuclias mobile app |
| Green Technology | Compliant with RoHS 6 Time-based PoE |
- Bảo hành: 36 tháng.
