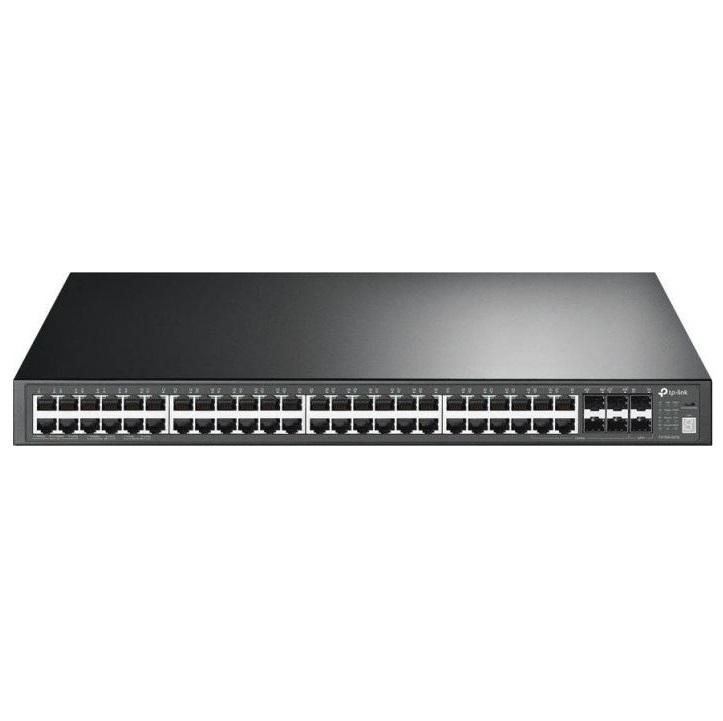

52-Port Gigabit Stackable L3 Managed Switch TP-Link T3700G-52TQ

52-Port Gigabit Stackable L3 Managed Switch TP-Link T3700G-52TQ

- Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network.

- True Physical Stacking technology supports up to 8 units for high scalability and efficient redundancy.

- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery.

- Dual removable power units minimize downtime.

- PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments.

- RJ45/Micro-USB Console ports and out-of-band Management port provide a range of management options.

- A USB 2.0 port makes it easy to import files and restore configurations.

Đặc tính kỹ thuật

ModelT3700G-52TQ
Hardware
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo Gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional)
1 Micro-USB, 1 RJ45 Console Port
1 Management Port
1 USB Slot
Fan Quantity2 Removable
Power Supply100~240VAC, 50/60Hz
Dimensions440 x 420 x 44 mm
Physical Stacking
Max Number of Stacking Ports Installable2 SFP+
No. of Units Per Stack8
Stacking Speed (Per Port)20 Gbps (Full-Duplex)
Performance
Switching CapacityUp to 176Gbps for a standalone switch
Packet Forwarding RateUp to 130.9Mpps for a standalone switch
MAC Address Table32K
Packet Buffer Memory4MB
Jumbo Frame12KB
Number of Routes8K IPv4
Number of Static Routes256 IPv4
Number of IP Interfaces128 IPv4
Software
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Ingress/Egress DiffServ
Port/Flow- based Rate Limiting
Voice VLAN
L2 FeaturesIGMP Snooping V1/V2/V3
MVR
802.3ad LACP (Up to 64 aggregation groups, 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLANSupports up to 4K VLANs simultaneously
IEEE 802.1Q VLAN/MAC VLAN/ Protocol VLAN/ QinQ/Private VLAN/ GVRP
L3 FeaturesWire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
DHCP Server/Relay
ARP Proxy
VRRP
ManagementWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
SYSLOG & Public MIBS
Dual Image
IPv6 Management

- Hàng chính hãng TP-LINK.

- Bảo hành: 12 tháng.
