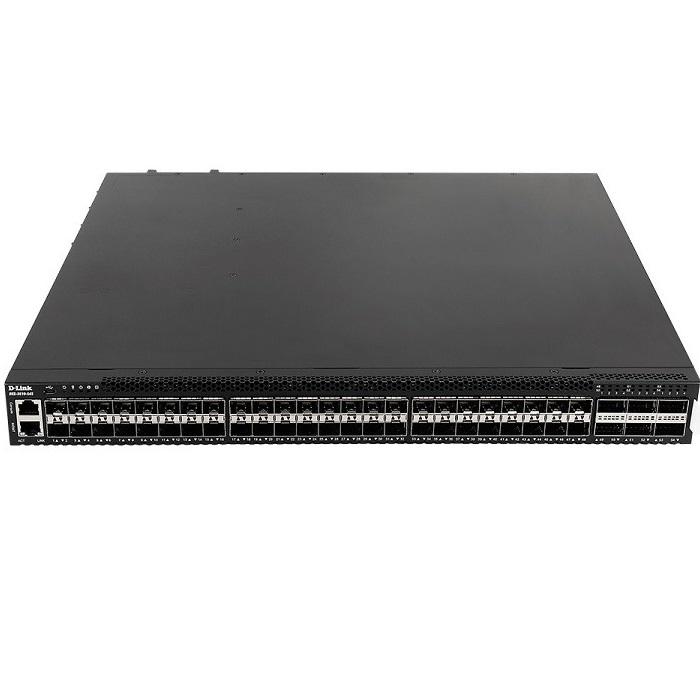

54-Port Layer 3 Stackable 10G Managed Switch D-Link DXS-3610-54S
Interfaces
- 48 x 1/10GbE SFP/SFP+ ports
- 6 x 40/100GbE QSFP+/QSFP28 ports
High Performance and Flexibility
- Two AC/DC hot-swappable power modules for 1+1 power redundancy and load sharing
- Hot-swappable fan trays with front-to-back airflow and N+1 cooling redundancy
- Up to 1200G stacking bandwidth with twelve devices functioning together as a single unit
Data Center Features
- IEEE 802.1Qbb Priority-based Flow Control (PFC)
Advanced Features
- MPLS
- ERPS (G.8032 v1/v2)
- OpenFlow v1.3
OAM
- IEEE 802.3ah Ethernet link OAM
- IEEE 802.1ag
- ITU-T Y.1731
Accessible Management
- Web-based GUI, Command Line Interface (CLI)
Specifications
| Model | DXS-3610-54S |
| Interface | |
| Ports | 48 x 1/10GbE SFP/SFP+ ports 6 x 40/100GbE QSFP+/QSFP28 ports |
| Console Port | RJ-45 console port for out-of-band management |
| Management Port | 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management |
| Alarm Port | 1 x RJ-45 port |
| Stacking Cost | 2 |
| USB Ports | 1 x USB 2.0 Type A port |
| Performance | |
| Switching Capacity | 2.16 Tbps |
| Max. Forwarding Rate | 1607.04 Mpps |
| Packet Buffer | 32 MB |
| MAC Address Table | Up to 288K |
| IPv4 Routing Table | Up to 32K |
| IPv6 Routing Table | Up to 16K |
| IPv6 Forwarding Table | Up to 144k |
| Jumbo Frame Size | 9436 bytes |
| Physical | |
| Acoustic | Max: 79.4 dB(A) Min: 65.3 dB(A) |
| Weight | 9.80 kg |
| Dimensions | 441.0 x 487.44 x 43.5 mm |
| Power Input | 1 + 1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
| Maximum Power Consumption | 320.8 W |
| Ventilation | 5 x fans |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 0% to 95% RH |
| Storage Humidity | 0% to 95% RH |
- Bảo hành: 36 tháng.
