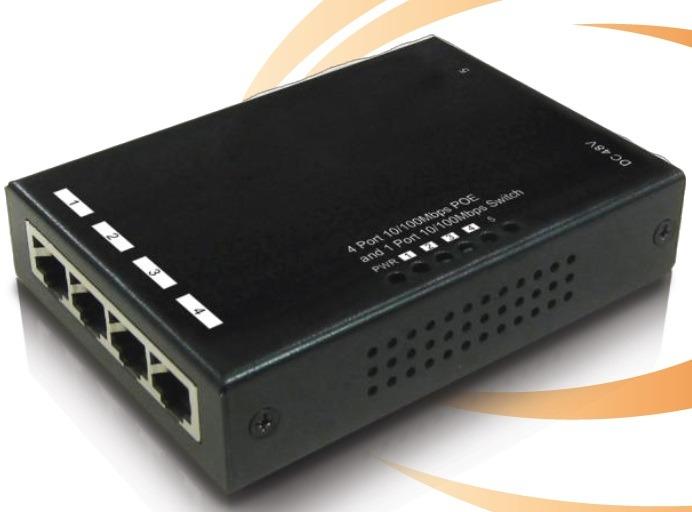

5-Port 10/100Mbps PoE Switch IONNET IFE-504 (72Watt)

- Bao gồm 4-Port PoE, công suất 72 Watt.

- Nguồn điện: 48VDC.

- 5 port 10/100Mbps with 4 port PSE Switch

- Complies with IEEE802.3 10Base-T

- Complies with IEEE802.3u 100Base-TX

- Complies with 802.3x Flow Control

- Complies with IEEE-802.3az Green Ethernet

OverView

- IFE-504(65) is 5 10/100M port Power over Ethernet switch which consists of 4 PSE/PoE ports. The models complies to POE+ IEEE 802.3at and 802.3af, it defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily. The case is designed for home user and small area application.

Features

- 5 ports 10/100Mbps with 4 PSE ports

- Complies with IEEE802.3 10Base-T

- Complies with IEEE802.3u 100Base-TX

- Complies with 802.3x Flow Control

- Complies with IEEE-802.3az Green Ethernet

- Complies with IEEE-802.3af / at

- Max. 30Watt each PSE/PoE port

- Broadcast storm control

- Auto-learning networking configurations

- 1K MAC table/ 1.25M bytes buffer memory

- Packet length Max. 1536 bytes

- Built-in 96K Byte SRAM buffer memory

- 9K Jumbo frame

- LED indicators: System Power, Link/Activity and PoE/PSE

- External power supply: 48V DC input

- Power Consumption: 5Watt

- Maximum Supply PoE Power per device: 72 Watt

- Operating Temperature: 0℃ ~55℃

- Storing Temperature: -20℃ ~ 90℃

- Humidity: 10% ~90% RH (Non-condensing)

- Dimension (L x W x H): 102 x 75 x 23mm

- Weight: 560 g

- Safety & EMI Certificates: CE & FCC

- Smart plug & play

- PoE+ Green power Management Features

- Link up mode: auto detects the level class of Power device, budgets power output for each port.

- Power down mode: auto detect no link/ standby of Power device

Specification

- Sản xuất tại Taiwan.

- Bảo hành: 12 tháng.
