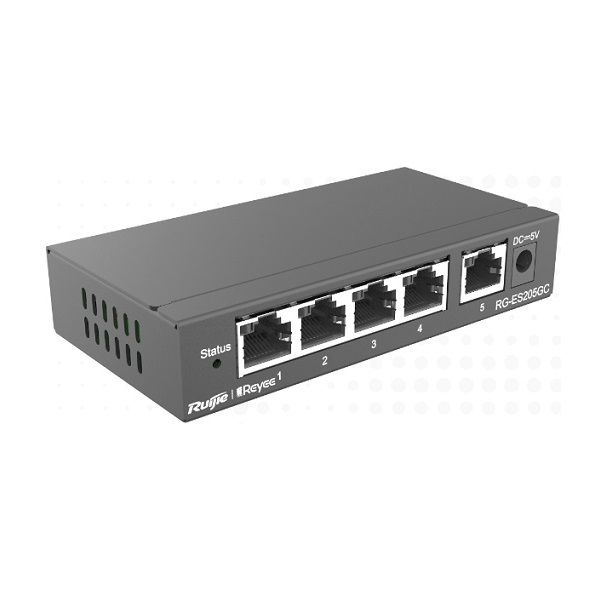

5-Port Gigabit Base-T Smart Cloud Switch RUIJIE RG-ES205GC
- Support 5 10/100/1000 Base-T ports.
- Switching capacity: 10Gbps.
- Switching Cache: 1Mbit.
- Package forwarding rate: 7.4Mpps.
- MAC address: 2K.
- Maximum Number of VLANs: 16.
- Dimensions (W x D x H): 119 x 75 x 24 mm.
Specifications
| Switching capacity | 10Gbps |
| Switching Cache | 1Mbit |
| Package forwarding rate | 7.4Mpps |
| Ports | 5 10/100/1000 Base-T ports |
| Speed / Duplex mode | Auto/ Half/ Full duplex Speed auto/ 10/ 100/1000 |
| MAC address | 2K |
| Maximum Number of VLANs | 16 |
| Allowed VLAN ID | 1 ~ 4094 |
| Port-based VLAN | Support |
| Flow Control | Support |
| Loop Protection | Support |
| Unknown Unicast Suppression | Support |
| Multicast/ Broadcast Storm Suppression | Support |
| Mirroring | Many-to-One Mirroring |
| Port Isolation | Support |
| Cable Testing | Support |
| ICMP Ping | Support |
| DNS | DNS Client |
| Telnet | Support |
| MACC | Support |
| Port Surge | Common mode: 4KV |
| Electrostatic Discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power Consumption | ≤ 3W |
| Power supply | External power adapter: 100-240V |
| Dimensions (W x D x H) | 119 x 75 x 24 mm |
| Weight | 0.36kg (with package) |
| MTBF | >200K |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Operating Altitude | -500 ~ 5000 meters |
| FAN | Fanless |
| Management | Support management and configuration through web management interface, MACC cloud platform and mobile app |
| Safety Standard Ground Resistance | GB4943-2011, EN 62638-1 |
| EMC | GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035 |
- Bảo hành: 3 năm.
