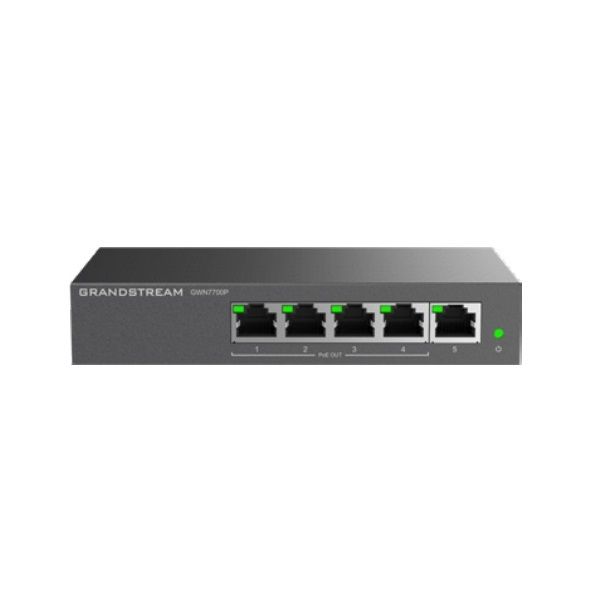

5-Port Gigabit PoE Unmanaged Network Switch Grandstream GWN7700P
- Hỗ trợ 1 cổng uplink gigabit và 4 cổng PoE.
- Công suất trên mỗi port: 30W.
- Công suất tổng: 60W.
- Tự động ngắt cổng công suất thấp ưu tiên cho công công suất cao nếu vượt quá 60W.
Thông số kỹ thuật
| Gigabit Ports | 5 |
| PoE Ports | 4 |
| Enclosure | Metal |
| Connector Type | Metal |
| Mounting | Desktop/ Wall-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | - 1~4 Ports 802.3 af/at compliant - Up to 30 W on Each Port, Total 60W Power Budget; - Overload to cut off the lowest-priority port. - Priority: Port 4 to Port 1 |
| LED Indicators | Per port: Link/Activity Green Per device: Power Green |
| Mac Address Table | 2K |
| Switching Capacity | 10Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP: •IGMP Fast-Leave •IGMP Snoop •Route Port Autolearn •Query Refresh Member Port |
| Power Adapter | External 53.5V/1.22A |
| Max Power Consumption by Base Station | 2W (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -40 to 70 °C (-40 to 158 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 5% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 145 x 80 x 27mm |
| Weight | 0.26kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
- Bảo hành: 24 tháng.
