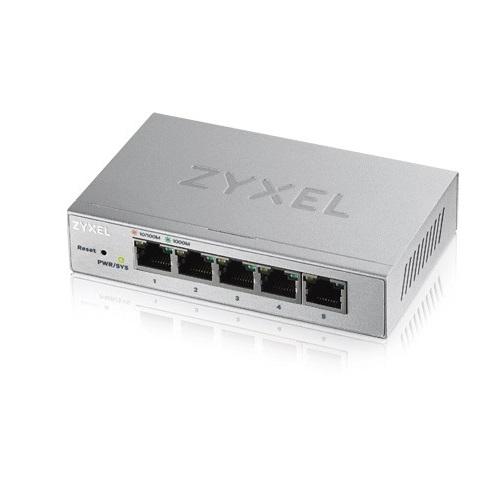

5-Port Web Managed Gigabit Switch ZyXEL GS1200-5
- The Zyxel GS1200-5 Web Managed Gigabit Switch provides simple control for better management. Unlike other advanced but complex managed switches, the GS1200 series switch is suitable for most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring.
- The Zyxel GS1200-5 does not require any additional software. It is easy, friendly, and more intuitive with its Web GUI which helps configuration tasks be completed in just a few simple clicks. Simplified for small office users’ network.
Standard Compliance
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3az EEE support
- IEEE 802.3x flow control
- IEEE 802.3z 1000BASE-X
- IEEE 802.1p CoS
- Auto MDI/MDI-X
- IEEE 802.1Q VLAN tagging
Features
- Web-based management
- System password
- VLAN (Port supported): 5 ports
- Port-based QoS
- 802.1p CoS
- Broadcast storm control
- Loop detection/prevention
- DHCP client
- Link aggregation: one LAG (Port 3&4)
- Port mirroring
- Weighted Round Robin (WRR) priority QoS
- IGMP snooping v1/v2/and v3 compatible
- Supported multicast groups: 128
- Firmware update
Specifications
| Model | GS1200-5 |
| Port Density | |
| Total port count | 5 |
| 1000BASE-T | 5 |
| Performance | |
| Switching capacity | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address | 2K |
| Jumbo frame | 9 KB |
| LED | |
| Power | Yes |
| Per port | Yes |
| Power | |
| Input voltage | 5 VDC/ 1 A |
| Power supply | External |
| Maximum power consumption (watt) | 2.03 |
| Physical Specifications | |
| Dimensions (WxDxH) | 121 x 75 x 26 mm |
| Weight | 233 g |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C/32°F to 104°F |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40°C to 70°C/-40°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
