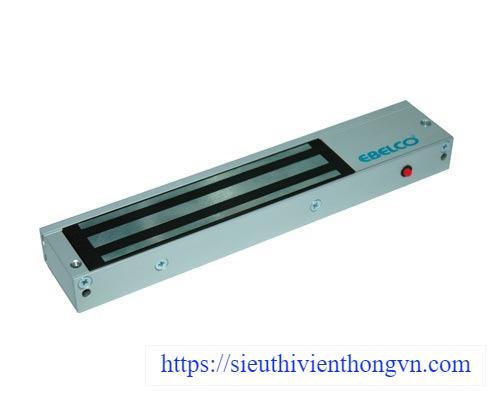

600LED-TB
- MS 000002547
- EBELCO
Voltage Input : 12 VDC / 24 VDC
Current Draw : 12V / 500mA ; 24V / 250mA (±5%)
Holding Force : Up to 600 lbs (272 kg)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment : Blue Zinc Plating
Operating Temperature : 0~55° C ( 32~131° F)
Operating Humidity : 0~95% ( non condensing)
Weight ( Magnet) : 1.1 kg (±1%)
Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm
Bình luận
EM600-S-Magnetic Contact
Voltage Input : 12 VDC / 24 VDC
Current Draw : 12V / 480mA ; 24V / 240mA (±5%)
Holding Force : Up to 600 lbs (272 kg)
Anti-Rust Surface Treatment : Blue Zinc Plating
Operating Temperature : 0~55° C ( 32~131° F)
Operating Humidity : 0~95% ( non condensing)
Weight ( Magnet) : 1.08 kg (±1%)
Dimensions :
Magnet – (L)250x(W)42x(T)25 mm
Armature – (L)180x(W)38x(T)11 mm
EM1200D-LED
Voltage Input : 12 VDC / 24 VDC (per Magnet)
Current Draw : 12V / 500mA ; 24V / 250mA (±5%)
Holding Force : Up to 1200 lbs x2 (545 kg x2)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment : Blue Zinc Plating
Operating Temperature : 0~55° C ( 32~131° F)
Operating Humidity : 0~95% ( non condensing)
Weight ( Magnet) : 5.0 kg (±1%)
Dimensions :
Magnet – (L)532x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm
EM1500-LED
Voltage Input : 12 VDC / 24 VDC
Current Draw : 12V / 450mA ; 24V / 220mA (±5%)
Holding Force : Up to 1500 lbs (680 kg)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment : Blue Zinc Plating
Operating Temperature : 0~55° C ( 32~131° F)
Operating Humidity : 0~95% ( non condensing)
Weight ( Magnet) : 3.6 kg (±1%)
Dimensions :
Magnet – (L)270x(W)76x(T)47 mm
Armature – (L)200x(W)70x(T)16.5 mm
EM1200-LED-Magnetic Contact
Voltage Input : 12 VDC / 24 VDC
Current Draw : 12V / 500mA ; 24V / 250mA (±5%)
Holding Force : Up to 1200 lbs (545 kg)
Hall Effect Contact : SPDT rated 2A at 24 VDC
Anti-Rust Surface Treatment : Blue Zinc Plating
Operating Temperature : 0~55° C ( 32~131° F)
Operating Humidity : 0~95% ( non condensing)
Weight ( Magnet) : 2.5 kg (±1%)
Dimensions :
Magnet – (L)266x(W)67x(T)39 mm
Armature – (L)185x(W)61x(T)16.5 mm
