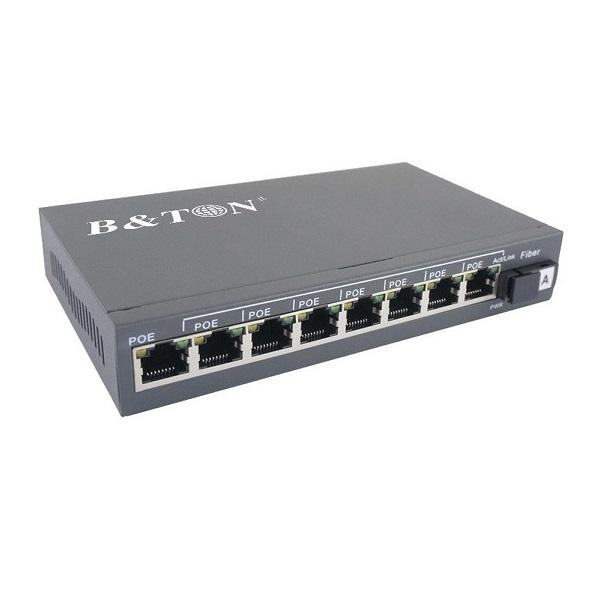

8-port 10/100/1000Mbps PoE Switch BTON BT-6108GE-20A/B
-8 port POE + 1 Dual Fiber, 1310nm, 20km SC, 10/100/1000Mbps, IEEE 802.3af,
15.4w per port.
-8 port 10/100/1000Base-T(X) PoE + 1 port 10/100/1000Base-F(X), 1310nm SM, 20 km, SC.
-Chuyển đổi quang điện Single Mode.
-Khoảng cách truyền: 20 km.
-Bước sóng quang hoạt động: 1310/1550nm (đối với đầu A), 1550/1310nm (đối với đầu B).
-Ngõ giao tiếp quang: Connector SC.
-Ngõ giao tiếp mạng: RJ45.
-Tương thích các chuẩn: IEEE 802.3af.
-Các đèn LED chỉ thị nguồn, PoE, Fiber.
-Công suất tiêu thụ: 15.4W cho mỗi port.
Features
-IEEE 802.3af/at power on POE ports.
-Supply power to wireless access points and surveillance cameras over Cat cables
-POE ports support MDI/MDIX.
-Support PoE power up to 15.4W (IEEE802.3af)/ 25.5W (IEEE802.3at) for PoE ports
-POE Lines: End-Span (12+,36-), Mid-Span (25+,78-).
-Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode.
-LED indicators for monitoring power, link, activity and speed.
-Forwarding Mode: Store-And-Forward.
-MTBF: 100,000 hours.
Specifications
POE Port | 8 port POE |
Uplink | 1 port Fiber |
Bandwidth | 16Gbps (10/100/1000M) |
Address Database Size | 4/8K |
MTBF | 190,000 hours |
Forwarding Mode | Store-And-Forward |
Network Protocols | IEEE 802.3, IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X,IEEE 802.3af / IEEE 802.3at, IEEE 802.3x Flow control, IEEE 802.1q VLAN(optional) |
LED Display | Power, POE, Fiber |
Power Supply | 52VDC, 1.85A/2.5A |
PoE Port Power | 15.4W/25.5W |
PoE Standard | IEEE 802.3af/at |
PoE Feature | All ports support MDI/MDIX |
Working Environment | Operating Temperature: 0 ° ~ 55 °C |
Storage Temperature: -20 ° ~ 75 °C | |
Operating Humidity: 10% ~ 95%, non-condensing | |
Transmission Distance | 100meter for UTP ports; 0~120km for Fiber ports |
Fiber Specs | Fiber Port: SC(default), FC/ST/LC(SFP) |
Wavelength/ Distance: | |
Single Fiber 1310/1550nm (25/40km); 1490/1550nm (60/80/100/120km) | |
Dimension | 205 x 95 x 25mm for 10/100/1000Mbps |
-Sản xuất tại Trung Quốc.
-Bảo hành: 15 tháng (Adaptor bảo hành 6 tháng).
