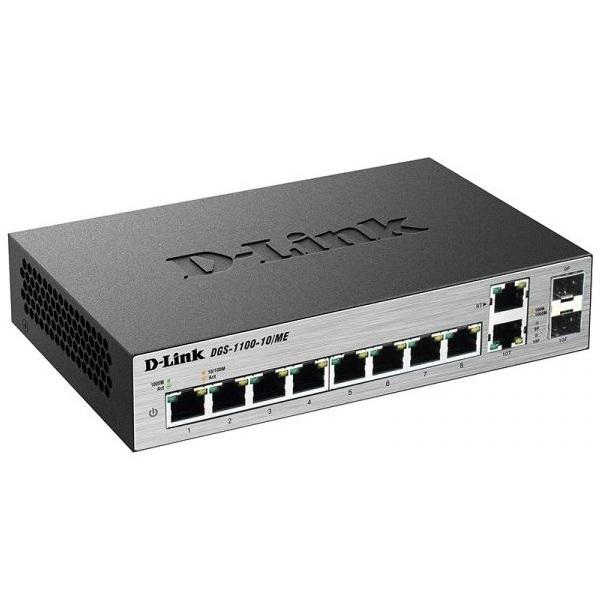

8-Port 1000Base-T Managed L2 Metro Ethernet Switch D-Link DGS-1100-10/ME
Physical
- Eight 10/100/1000 Mbps Ports
- Two combo 100/1000Mbps / SFP Ports
- Ethernet Port supports 6kV Surge Protection
Multicasting Features
- IGMP Snooping/MLD Snooping
- IGMP Authentication
- Limited IP Multicast
- Multicast VLAN
Authentication Authorization and Accounting (AAA)
- Port/Host-based 802.1X Access Control
- RADIUS/Local Authentication Database
Operations, Administration and Management (OAM)
- Cable Diagnostics
- IEEE 802.3ah
Management Features
- SNMP v1/v2c/v3
- RMON v1
- Link Layer Discovery Protocol (LLDP)
- DHCP Auto Configuration
- Neighbor Discovering
Specifications
| Model | DGS-1100-10/ME |
| General | |
| Number of Ports | Eight 10/100/1000BASE-TX ports 2 combo 100/1000Base-T/SFP ports |
| Standards | IEEE 802.3 compliance IEEE 802.3u compliance IEEE 802.3ab compliance IEEE 802.3x Flow Control IEEE 802.3az compliance |
| Performance | |
| Switching Capacity | 20 Gbps |
| 64-byte Maximum Forwarding Rate | 14.88 Mbps (based on 64 Bytes) |
| MAC Address Table Size | 8K Entries |
| DRAM for CPU | 128 MB |
| Packet Buffer | 4.1 Mbit |
| Flash Memory | 16 MB |
| Jumbo Frame | Up to 10 Kbytes |
| LEDs | |
| Power (per device) | Yes |
| Link/Activity/Speed (per port) | Yes |
| Power Consumption | |
| Standby Mode | 3.4W |
| Maximum | 7.9W |
| Physical | |
| Power Input | External Power Adapter: 100 to 240 V AC, 50 to 60 Hz Output: 12 V/1 A |
| Size | 190 x 120 x 38 mm |
| Weight | 0.63 kg |
| Ventilation | Fanless |
| Operating Temperature | 5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Software Features | |
| L2 Features | MAC Address Table: 8K 802.3x Flow Control HOL Blocking Prevention Loopback Detection Port Mirroring Max 4 Mirror sessions One-to-One Many-to-One |
| L2 Multicasting | IGMP Snooping IGMP Snooping v1/v2, v3 Awareness Supports 256 IGMP snooping groups (shared with MLD Snooping) Host-based IGMP snooping Fast Leave IGMP Authentication MLD Snooping MLD Snooping v1, v2 Supports 256 MLD snooping groups (shared with IGMP Snooping) Host-based MLD Snooping Fast Leave Limited IP Multicast |
| VLAN | 802.1Q Tagged VLAN VLAN Group Supports 32 static VLAN groups Management VLAN Port-based VLAN ISM VLAN Double VLAN (Q-in-Q) Port-based Q-in-Q |
| Quality of Service (QoS) | 8 queues per port Queue Handling Bandwidth Control CoS Based on: 802.1p, DSCP |
| Security | Port Security Traffic Segmentation Broadcast/Multicast/Unknown Unicast Storm Control D-Link Safeguard Engine |
| AAA | 802.1X Supports Guest VLAN Support Local/RADIUS Servers Support RADIUS Accounting 3 Levels of User Accounts |
| OAM | Cable Diagnostics 802.3ah |
| Management | Web-based GUI Command Line Interface (CLI) Telnet Server TFTP Client SNMP v1/v2c/v3 SNMP Traps System Log RMON v1 LLDP DHCP Client DHCP Auto-Configuration DHCP Relay for IPv4/IPv6 DHCP Relay Option 82 DHCP Relay Option 37 PPPoE Circult-ID Tag Insertion SNTP CPU Monitoring Password Encryption |
- Bảo hành: 36 tháng.
