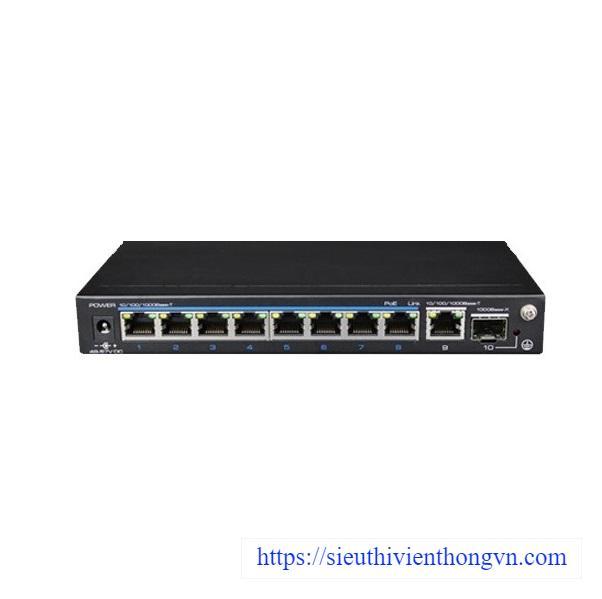

8-Port 10/100/1000Mbps PoE Switch IONNET IGE-1008GS-120
- 8*10/100/1000Base-T Ethernet ports (PoE), 1* 10/100/1000BASE Ethernet ports, 1*gigabit SFP ports.
- Compliance with standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE802.3af/at.
- PoE Power Supply: With 8x gigabit PoE RJ45 ports, each port supports max. 30W PoE output, whole machine reaches 120W PoE power output.
- One-key CCTV: Quickly achieve isolation among downlink ports vis dial switch, effectively restrain network storm, improve network feature.
- Protection: Support 6KV surge immunity, EFT testing standard.
- Operation: Plug&play, convenient to use, support desktop, wall-mounted installations.
Specifications
| Model | IGE-1008GS-120 |
| Downstream Ports | 8* 10/100/1000Base-T (PoE) |
| Uplink Ports | 1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, EEE802.3 X |
| Switch Capacity | 20Gbps |
| Throughput | 14Mpps |
| Switch Processing Scheme | Store and Forward |
| Memory Buffer | 1M |
| MAC Table | 4K |
| PoE Standard | 802.3af/at (PSE) |
| PsE Type | End- span |
| Power Pin Assignment | 1/2(+), 3/6(–) |
| PoE Power Output | 54V DC, 30 watts max |
| PoE Budge | 120 watts max |
| Lightning protection | 6KV Execute: IEC61000-4-5 |
| ESD | 6KV Contact discharge 8KV Air discharge Execute: IEC61000-4-2 |
| Power Supply | DC 48V~57V |
| Power Dissipation | <5W |
| Working temperature | -10°C~45°C |
| Storage temperature | -40°C ~85°C |
| Humidity (Non condensin) | 5%-95% |
| Dimensions (LxWxH) | 200×101.8×27mm |
| Weight | 500g |
- Bảo hành: 12 tháng.
