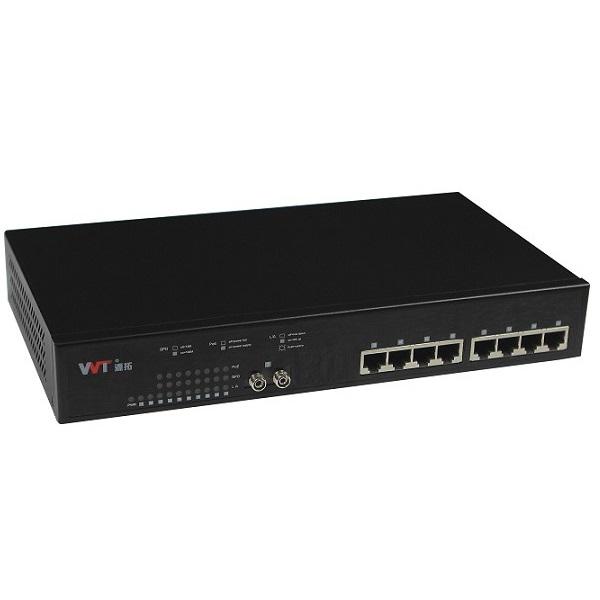

8-port 10/100Base-T(X)+1000Base-F(X) optical Switch WINTOP YT-DS109-1GF8T

8-port 10/100Base-T(X)+1000Base-F(X) optical Switch WINTOP YT-DS109-1GF8T

  • MS 000011695
  • WINTOP
Giá : 2,184,000 vnđ (Đã bao gồm VAT)

8-port 10/100Base-T(X)+1000Base-F(X) optical Switch WINTOP YT-DS109-1GF8T

8-port 10/100Base-T(X)+1000Base-F(X) optical Switch WINTOP YT-DS109-1GF8T

- YT-DS109-1GF8T is a plug-and-play Ethernet switch that supports a maximum of 1 Gigabit optical port and 8 100M electrical ports. It adopts a fanless, low power consumption, industrial level 4 design and has an IP30 protection level. It has an operating temperature of -20 ~ 60℃, has a strong ruggedness, can adapt to harsh outdoor environments, and has high EMI/EMC protection capabilities. Each product has passed 100% aging test to ensure quality. The product has been widely used in Ethernet communication systems that require simple network structure.

- Provide 8×10/100Base-T(X) ports, 1×1000Base-F(X) optical port.

- Fanless design, IP30 protection grade, impact-resistant metal shell.

- Applicable voltage range 100~240V AC.

- EMC industrial level 4 electromagnetic compatibility requirements (lightning protection, static electricity, surge, group pulse).

- Full port 6KV lightning protection.

- Applicable to -20℃~60℃ working environment.

Đặc tính kỹ thuật

Model YT-DS109-1GF8T
InterfaceOptical port: 1000Mbps (Interface type: SC/ST/FC or SFP slot)
Network port: 10/100Mbps self-adaptive, Full/Half duplex mode, support MDI/MDI-X. Transmission distance 0-100m.
LED indicator: PWR, Link/ACT, SPD
Switch propertiesBackplane bandwidth: 3.6Gbps MAC address table: 8K
Message cache size: 1Mbits Super frame rate: 10KB
Packet forwarding rate: 4.17Mpps
Power requirementsInput voltage: 100~240V AC
Input current: Max 50mA
Physical propertiesHousing: metal, IP30 protection
Size: 290mm x 165mm x 45mm
Weight: 1200g
Installation method: desktop/wall-mounted
Working environmentOperating temperature: -20 ~ 60°C (-4 ~ 140°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative humidity: 5 ~ 95% (non-condensing)
Industry standards and Certificationlectromagnetic interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A
Electromagnetic sensitivity (EMS): IEC61000-4-2 (ESD) level 4, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000- 4-6 (CS) Level 3
Vibration resistance: IEC60068-2-6
Shock resistance: IEC60068-2-27
Free fall: IEC60068-2-32
MTBF (mean time between failures)
Time: 500000h

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
