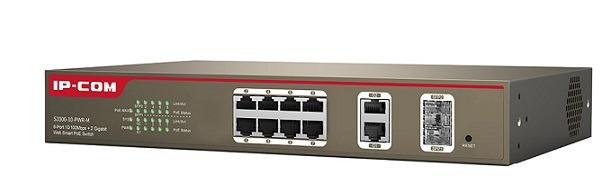

8-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch IP-COM S3300-10-PWR-M
- Tiêu chuẩn kết nối: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at.
- Hỗ trợ 8x10/100Mbps RJ45 Ports (Data/PoE), 2x10/100/1000Mbps RJ45 Ports (Data), 2x100/1000Mbps SFP Slot (Data) (Auto Negotiation/Auto MDI/MDIX).
- Công suất mỗi cổng < 40W.
- Tổng công suất 150W.
- Dung lượng chuyển đổi: 5.6Gbps.
- Tốc độ chuyển tiếp gói tin: 4.22Mpps.
- Hỗ trợ truyền tải tín hiệu 250m (10Mbps).
- Hỗ trợ cổng VLAN.
- Nguồn điện: AC 100-240V 50/60Hz.
Đặc tính kỹ thuật
| Hardware Features | |
| Standards&Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Switching capacity | 5.6 Gbps |
| Throughput | 4.22Mpps |
| Dimensions (W × D × H) | 294mm x 178.8mm x 44mm |
| MTBF | ≥100,000 hours(about 11 years) |
| Interfaces | 8 10/100Mbps RJ45 Ports (Data/PoE) 2 10/100/1000Mbps RJ45 Ports (Data) 2 100/1000Mbps SFP Slot (Data) (Auto Negotiation/Auto MDI/MDIX) |
| Port lightning protection | ≥6KV |
| Capacity | - Wire-speed forwarding: Support - Forwarding mode: Store-forward and cut-through - Mac Address Table: 4K |
| PoE Supply | Port 1 to Port 16 support standard IEEE802.3at/af power (maximum power for each port is 38W), PoE power type is end-span (12+, 36- and 45+, 78- line pair) |
| Input Voltage | AC: 100-240V～ 50/60Hz |
| Power consumption | In full configuration: <150W Power Supply: 123W |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Software Features | |
| PoE management | Support over temperature protection for PoE module Support graphical management, detection of PD equipment |
| VLAN | Supports up to 18 VLAN IDs Port VLAN Supports up to 31 VLAN IDs 802.1Q VLAN |
| Security | MAC-Port Binding |
| Link aggregation | Static Trunk Supports 3 groups of 4-Port trunk support |
| STP | STP/RSTP |
| IGMP Snooping | IGMP (v1/v2) Snooping |
| Port Mirroring | N: 1 port mirroring |
| QoS | 802.1p and DSCP priority re-marking Flow control Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR, |
| Firmware upgrade | Upgrade via the Web |
| Management and maintenance | Support SNMP v1/v2 and WEB-based management |
| Certification | FCC, CE, RoHS |
- Bảo hành: 24 tháng.
