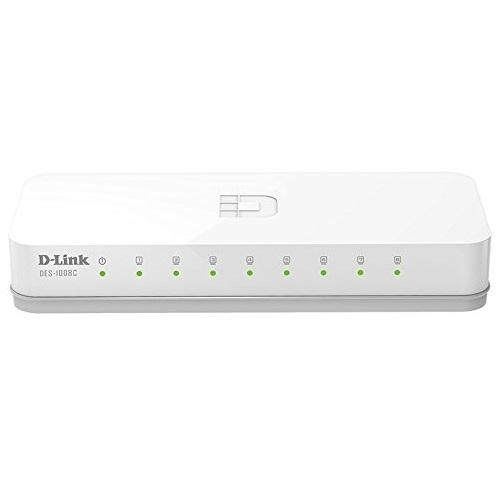

8-port 10/100Mbps Switch D-LINK DES-1008C
The DES-1008C 10/100 Mbps Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Conserve Energy
The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DES-1008C is Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Đặc tính kỹ thuật
| Device Interfaces | Eight 10/100 Mbps LAN ports |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Switching Capacity | 1.6 Gbps switching fabric |
| Advanced Features | Auto MDI/MDIX crossover for all ports. Secure store-and-forward switching scheme. Full/half-duplex for Ethernet/Fast Ethernet speeds. Supports 2,048 byte jumbo frames. Back pressure at half-duplex operation. Wire-speed reception and transmission. Store and-Forward switching method. Auto-negotiation for each port. IEEE compliant IEEE 802.3 10BASE-T. IEEE 802.3u 100BASE-TX. IEEE 802.3az EEE. IEEE 802.3x flow control |
| Ethernet | Ethernet:10 Mbps (half duplex), 20 Mbps (full duplex) |
| Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) | |
| Transmission Method | Store-and-forward |
| MAC Address Table Size | 2.000 |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port |
| Fast Ethernet: 148,800 pps per port | |
| RAM Buffer | 96KB per device |
| LED Indicators | Per port: Link/Activity/Speed |
| Per device: Power | |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
| Power | 5VDC/ 0.55A, DC jack: Located on side |
| Power Consumption | Power On (Standby): 0.55 watts, Maximum: 1.55 watts |
| MTBF | 1 579 582 hours |
| Dimensions | 131 x 54 x 21mm |
| Weight | 74.8g |
-Bảo hành: 36 tháng.
