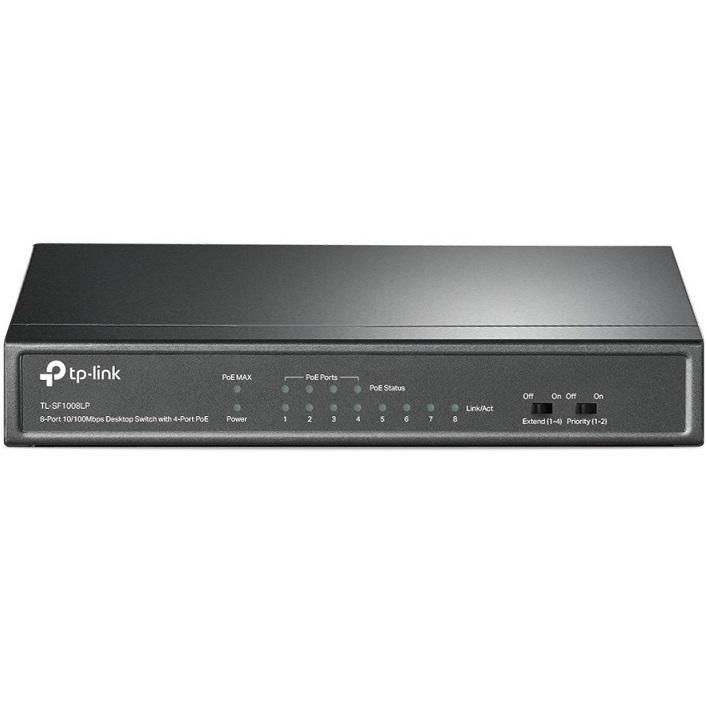

8-port 10/100Mbps with 4-port PoE Switch TP-LINK TL-SF1008LP
- 8× 10/100 Mbps RJ45 ports.
- 4× PoE ports transfer data and power on individual cables.
- Works with IEEE 802.3af compliant PDs.
- Up to 250m data and power transmitting range under Extend Mode.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
- Supports PoE Power up to 41 W for all PoE ports.
- Plug and play with no configuration required.
Đặc tính kỹ thuật
| Hardware | |
| Interface | 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Ports 1–4 Power Supply: 41 W |
| Backbound Bandwidth | 1.6 Gbps |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions (W x D x H) | 171 × 98 × 27 mm |
| Max Power Consumption | 2.2 W (220 V/ 50 Hz. no PD connected) 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max Heat Dissipation | 7.5 BTU/h(no PD connected) 160.61 BTU/h(with 41 W PD connected) |
| Software | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Others | |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 12 tháng.
