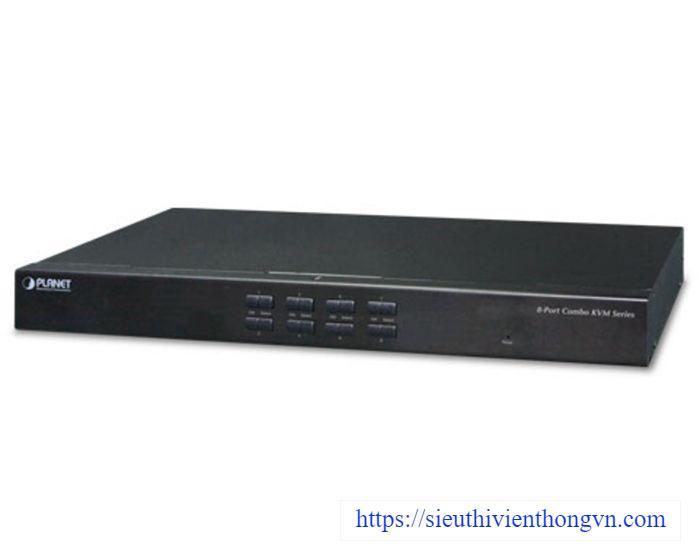

8-Port Combo KVM Switch PLANET KVM-210-08
Hardware
- 1U rack-mount size and desktop design.
- Standalone machine controls up to 8 sets of computers.
- Up to 2 levels can be cascaded and up to 64 computers can be controlled.
- Front panel status LEDs give a clear indication of the active computers.
- Supports a high resolution of up to 2048 x 1536 and 350MHz of bandwidth.
Security
- Two-layer password security protection.
Management
- Auto scan mode for monitoring computers.
- Requires no additional software or hardware.
- Computer selection via Port Select Button, Hotkey and On Screen Display (OSD).
- Hot pluggable: Add or remove computers without having to power down the switch.
- QVS (Quick View Setting): Quickly select your computer by naming or SN number.
Compatibility
- Multiplatform support -- Windows, Linux and Sun.
- Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice.
Specifications
| Hardware | |
| Number of Ports | 8 |
| Maximum | 64 by cascading (KVM-210-08 x 8) |
| PC Ports | Keyboard: PS/2 female + USB Type A female |
| Mouse: PS/2 female + USB Type A female | |
| Video: 8 x HDB-15 female | |
| Console Ports | Keyboard: PS/2 female + USB Type A female |
| Mouse: PS/2 female + USB Type A female | |
| Video: 1 x HDB-15 female | |
| LED | On Line: 8 |
| Selected: 8 | |
| Button | Reset: 1 |
| Select: 8 | |
| Video Resolution | 2048 x 1536 |
| Housing | Metal |
| Dimensions (W x D x H) | 432 x 155 x 44 mm |
| Weight | 2.22kg |
| Power Requirement | 9V DC, 1A |
| Installation | 1U rack-mountable, desktop |
| Management | |
| PC Selection | Port select button Hotkeys on keyboard OSD (on screen display) |
| Scan Interval | 5~60 seconds |
| Security | User password and super password |
| Environment & Certification | |
| Operating Temperature | -10 ~ 50 degrees C |
| Operating Humidity | 0 ~ 90% |
| Regulatory | CE, FCC |
- Bảo hành: 12 tháng.
